EM008LXQADG13CS1R

Memory IC Overview

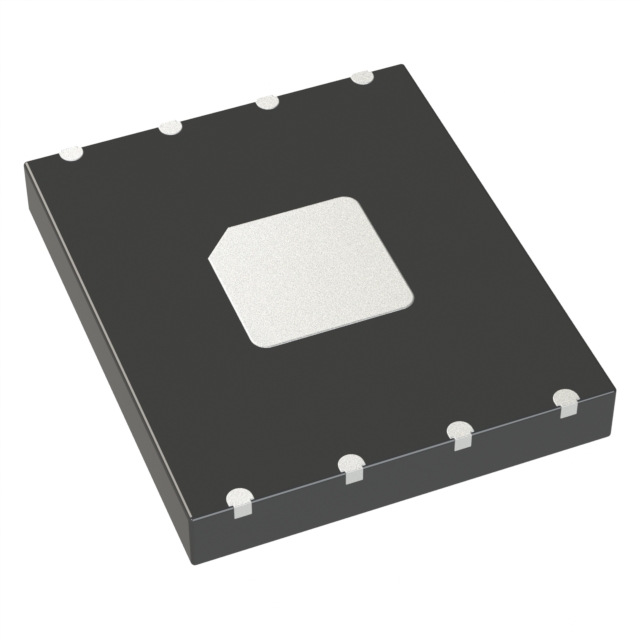

The EM008LXQADG13CS1R is an 8 Mbit Magnetoresistive Random Access Memory (MRAM) integrated circuit manufactured by Everspin Technologies. It features a Quad SPI interface operating at frequencies up to 133 MHz and is organized as 1 M x 8 bits. The device operates within a supply voltage range of 1.65 V to 2 V, with typical working power currents specified at 124 mA and 156 mA. It is housed in an 8-DFN package designed for surface mount technology (SMD/SMT). The component supports an industrial temperature range from 0°C to +70°C.

Memory IC Feature Summary

• Non-volatile memory architecture utilizing spin-transfer torque MRAM technology for data retention without power.
• Quad SPI interface enabling high-speed serial communication with multiple input/output lines.
• Low voltage operation compatible with 1.65 V to 2 V power supplies.
• Industrial temperature rating suitable for standard commercial and industrial environments.

Memory IC Applications

• Data logging systems requiring non-volatile storage with high endurance.
• Embedded controllers needing fast boot-up times due to zero-latency reads.
• Industrial automation equipment requiring reliable memory in varying thermal conditions.
• Consumer electronics devices utilizing low-power serial memory interfaces.

Memory IC Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct package type and temperature grade. Confirm availability status as distribution channels may indicate restricted supply or limited stock levels. Ensure compatibility with existing PCB footprints for the 8-DFN package. Check for moisture sensitivity level requirements during assembly processing.

Memory IC Selection Notes

Select this component when an 8 Mbit capacity is required with Quad SPI connectivity. Consider the 8-DFN package dimensions for board space constraints. Evaluate the 1.65 V to 2 V voltage range against system power rails. Compare the 0°C to +70°C operating range against environmental requirements. Verify that the 133 MHz clock speed meets system throughput needs.

Memory IC Part Context

This part belongs to the EMxxLX series of MRAM devices from Everspin Technologies. The series offers spin-transfer torque MRAM solutions combining the density of flash with the speed and endurance of SRAM. These devices are designed to replace traditional EEPROM and Flash memories in applications demanding high write cycles and instant access.

Memory IC FAQ

What is the memory organization of the EM008LXQADG13CS1R?

The memory is organized as 1 Megabit by 8 bits (1M x 8).

Does this device support unlimited write endurance?

Yes, MRAM technology provides essentially unlimited write endurance compared to Flash or EEPROM.

What is the maximum operating frequency?

The Quad SPI interface supports clock frequencies up to 133 MHz.
