EM68C16CWQG-25H

Memory IC Overview

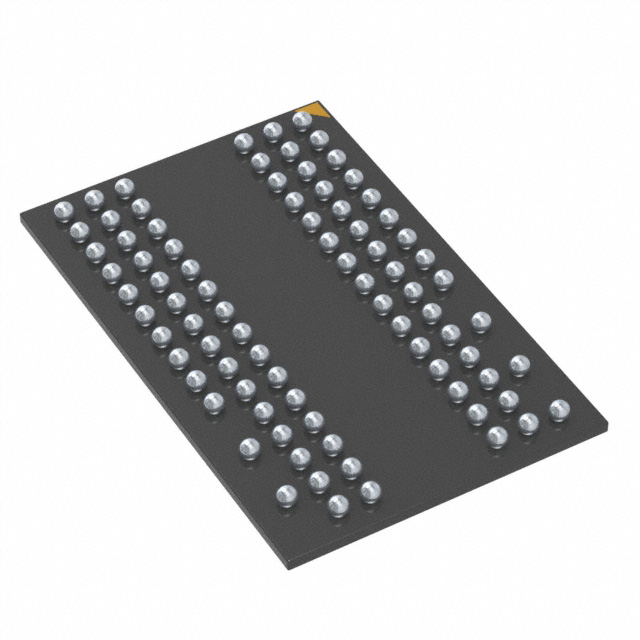

The EM68C16CWQG-25H is a 64M x 16 bit Double Data Rate II (DDR2) Synchronous DRAM manufactured by Etron Technology, Inc. This component operates with a maximum system frequency of 400 MHz and features a 2.5 ns access time at the specified speed grade. It utilizes a 96-ball FBGA package compliant with RoHS standards. The device supports multi-bank page burst access modes and includes auto-refresh capabilities for data retention.

Memory IC Feature Summary

• Supports DDR2 interface specifications for high-speed data transfer
• Features multi-bank architecture enabling concurrent operations
• Includes automatic and self-refresh mechanisms to maintain data integrity

Memory IC Applications

• High-performance computing systems requiring fast memory access
• Graphics processing units and display controllers
• Embedded systems utilizing DDR2 SDRAM interfaces

Memory IC Procurement Notes

Verify the specific suffix 'Q' against official datasheets to confirm package type and temperature range. Ensure compatibility with DDR2 controller specifications regarding voltage levels and timing parameters. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.

Memory IC Selection Notes

Select this component when a 64M x 16 configuration is required with 400 MHz operation capability. Compare access times and power consumption metrics against alternative DDR2 devices. Ensure the FBGA footprint matches the target PCB layout constraints and thermal management requirements.

Memory IC Part Context

This part belongs to the EM68C series of DDR2 SDRAMs from Etron Technology. It shares architectural similarities with other members like the EM68C16CWQE-25H but differs in package and potentially qualification grades. The series targets applications demanding synchronous dynamic random-access memory with double data rate capabilities.

Memory IC Replacement Considerations

Direct substitutes include the EM68C16CWQE-25H and EM68C16CWQG-18H from the same manufacturer. Verify pinout compatibility and electrical characteristics before substitution. Cross-reference with Alliance Semiconductor AS4C64M16D2-25BCN for functional equivalence.
