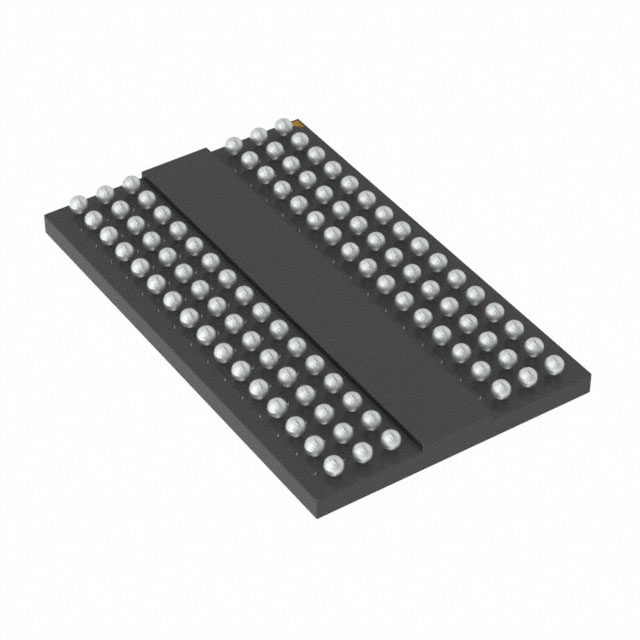

EM6HE16EWAKG-10H is listed in the Memory IC range at ChipApex. The manufacturer field lists Etron Technology, Inc.. Its product description is IC DRAM 4GBIT PARALLEL 96FBGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for EM6HE16EWAKG-10H
- Description：IC DRAM 4GBIT PARALLEL 96FBGA
- Series：-
- Mfr：Etron Technology, Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Volatile
- Memory Format：DRAM
- Technology：SDRAM - DDR3L
- Memory Size：4Gbit
- Memory Organization：256M x 16
- Memory Interface：Parallel
- Clock Frequency：933 MHz
- Write Cycle Time - Word, Page：15ns
- Voltage - Supply：1.283V ~ 1.45V
- Operating Temperature：0°C ~ 95°C (TC)
- Mounting Type：Surface Mount
- Package / Case：96-TFBGA
- Supplier Device Package：96-FBGA (7.5x13.5)
- Access Time：20 ns
- Grade：-
- Qualification：-
Memory IC datasheet and documents for EM6HE16EWAKG-10H
Memory IC Overview
The EM6HE16EWAKG-10H is a 4Gb (256M x 16) DDR3L Synchronous DRAM manufactured by Etron Technology. It operates at a clock frequency of 933 MHz with a parallel interface. The component utilizes a 96-FBGA package measuring 7.5x13.5 mm. Designed for low voltage applications, it supports standard DDR3L electrical specifications and includes features such as auto-refresh and self-refresh modes for data retention.
Memory IC Feature Summary
- Supports DDR3L low voltage operation standards
- Utilizes a compact 96-pin FBGA surface-mount package
- Includes auto-refresh and self-refresh capabilities
Memory IC Applications
- Embedded memory systems requiring low power consumption
- Portable electronic devices utilizing DDR3L interfaces
- Industrial control units with space-constrained PCB layouts
Memory IC Procurement Notes
Verify the specific suffix '10H' against official Etron Technology documentation to confirm the exact speed grade and temperature range. Ensure compatibility with the target system's voltage requirements and signal integrity constraints before procurement. Cross-reference the 96-FBGA footprint dimensions with the design layout.
Memory IC Selection Notes
Select this component when a 4Gb density with a 16-bit width is required in a small form factor. The DDR3L specification makes it suitable for battery-operated or thermally sensitive environments compared to standard DDR3. Confirm that the host controller supports the 933 MHz operational frequency and the specific pinout configuration provided in the datasheet.
Memory IC Part Context
This part belongs to the EM6HE series of DDR3L memory solutions from Etron Technology. The series is designed to provide high-density storage in compact packages for modern embedded applications. The 'HE' designation typically indicates specific performance and packaging characteristics within the manufacturer's portfolio.
Memory IC Replacement Considerations
Check for EM6HE16EWAKG-10IH or EM6HE16EWXD-10H variants which may offer different speed grades or package options. Verify pin-to-pin compatibility and electrical parameter alignment before substituting.
