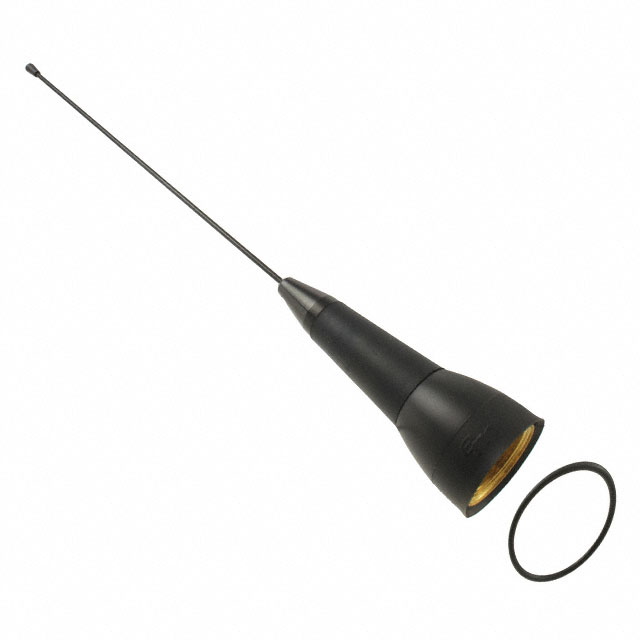

EMFLX-M10003-GPI is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 450MHZ WHIP STR NMO CONN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for EMFLX-M10003-GPI
- Description：RF ANT 450MHZ WHIP STR NMO CONN
- Series：e/m-Flex™
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：450MHz
- Frequency Range：380MHz ~ 520MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：16.126" (409.60mm)
- Applications：-
- Power - Max：150 W
Antennas RF datasheet and documents for EMFLX-M10003-GPI
Antennas RF Overview
The EMFLX-M10003-GPI is a ground plane independent RF whip antenna manufactured by Nearson Inc. It operates within the UHF frequency range of 380-520 MHz, with a center frequency specification of 450 MHz. The component features a straight whip design and utilizes an NMO connector for mounting. It offers a gain of 2 dBi to 3 dBi depending on specific documentation sources. The unit is rated IP67 for environmental protection and is designed for roof mount applications.
Antennas RF Feature Summary
- Ground plane independent operation for flexible installation
- IP67 rated poly spring construction for durability
- Straight whip form factor with NMO connector interface
Antennas RF Applications
- UHF mobile radio communications
- Vehicle roof mount installations
- Public safety communication systems
Antennas RF Procurement Notes
Verify the specific datasheet version when ordering, as gain specifications vary between 2 dBi and 3 dBi across different distributor listings. Confirm the NMO connector compatibility with existing vehicle mounts. Ensure the IP67 rating meets the required environmental exposure standards for the intended deployment location.
Antennas RF Selection Notes
Select this model for applications requiring ground plane independence to simplify vehicle integration. Consider the 380-520 MHz tunable range for broad UHF coverage needs. Evaluate the IP67 rating against local weather conditions. Compare the 2-3 dBi gain options against signal strength requirements for the specific operational environment.
Antennas RF Part Context
This component belongs to the E/M Wave or Nearson product line of RF antennas. It is categorized under whip antennas designed for mobile and vehicular use. The part number indicates specific configuration details regarding the connector type and frequency band tuning capabilities within the manufacturer's portfolio.
Antennas RF Replacement Considerations
Direct substitute part numbers are not explicitly confirmed in public documentation. Cross-reference with other ground plane independent UHF whip antennas featuring NMO connectors and similar IP67 ratings if replacement is necessary.
