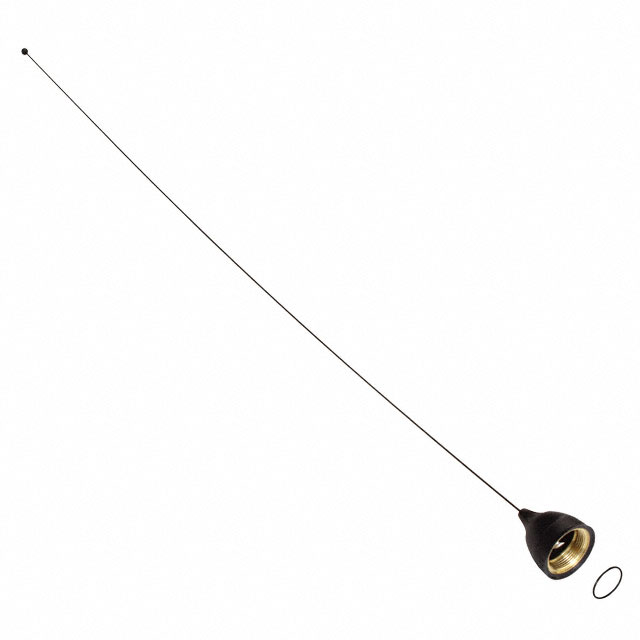

EMFLX-M10007-GPI

$34.43

Description：RF ANT 460MHZ WHIP STR NMO CONN
Series：e/m-Flex™
Mfr：Nearson Inc.
Package：Bulk

SKU:9e5d28e7ec55 Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EMFLX-M10007-GPI is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 460MHZ WHIP STR NMO CONN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for EMFLX-M10007-GPI

Description：RF ANT 460MHZ WHIP STR NMO CONN
Series：e/m-Flex™
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：460MHz
Frequency Range：440MHz ~ 480MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3dBd
Features：-
Termination：NMO
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：31.260" (794.00mm)
Applications：-
Power - Max：150 W

Antennas RF datasheet and documents for EMFLX-M10007-GPI

EMFLX-M10007-GPI

Antennas RF Overview

The EMFLX-M10007-GPI is a UHF flexible whip antenna from the e/m-Flex series, designed for roof mounting applications. It operates within a frequency range of 440MHz to 480MHz, with a center frequency of 460MHz. The antenna provides a gain of 3 dBd and maintains a VSWR of 2:1. It features an NMO connector termination and supports a maximum power handling capacity of 150 W. The unit has a maximum height of 31.260 inches (794.00mm) and utilizes a durable Xenoy base with TPV overmold dust seal construction.

Antennas RF Feature Summary

Flexible omni-directional design requiring no ground plane
Durable Xenoy base with TPV overmold dust seal
NMO connector termination for secure mounting

Antennas RF Applications

UHF vehicle communications
Roof mount installations
Mobile radio systems

Antennas RF Procurement Notes

Verify the specific ordering suffix GPI against official Nearson documentation to confirm exact configuration details. Ensure compatibility with existing NMO mounts and vehicle roof structures before procurement. Cross-reference the active part status and RoHS compliance requirements with current manufacturer listings to avoid discrepancies in supply chain data.

Antennas RF Selection Notes

Select this model when a flexible, ground-plane-independent solution is required for UHF bands between 440MHz and 480MHz. The NMO interface dictates compatibility with standard automotive or marine mounting hardware. Consider the 150W power rating and physical height constraints relative to the intended installation environment and vehicle clearance specifications.

Antennas RF Part Context

This component belongs to the e/m-Flex series by Nearson Inc., which specializes in flexible antenna technologies. The EMFLX-M10007 variant serves as the base product number, with the -GPI suffix denoting specific packaging or configuration attributes defined by the manufacturer. It is categorized under RF antennas for UHF frequency groups.

Antennas RF Replacement Considerations

Official replacement bases include the EM9-02RP O-ring pack. Verify direct functional substitutes through Nearson's approved cross-reference lists to ensure identical electrical performance and mechanical fitment without altering system integrity.
