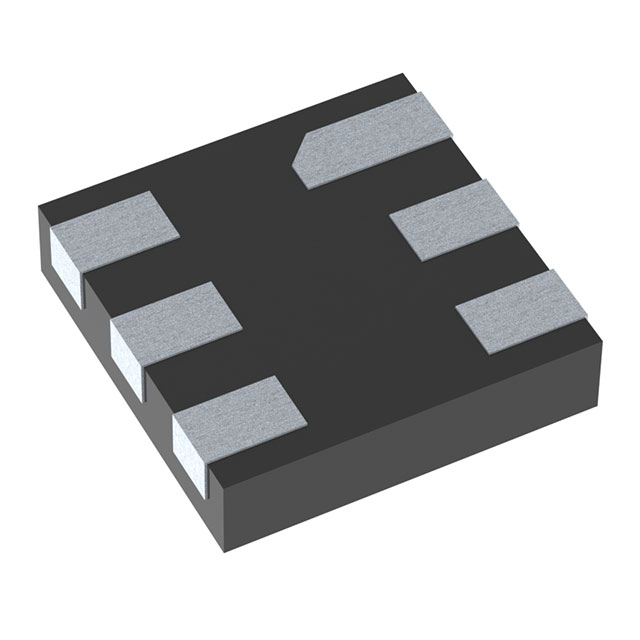

EMI8041MUTAG is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists onsemi. Its product description is CMC 100MA 2LN SMD ESD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for EMI8041MUTAG
- Description：CMC 100MA 2LN SMD ESD
- Series：EMI80
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：6Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：TVS Diode ESD Protection
- Mounting Type：Surface Mount
- Size / Dimension：0.059" L x 0.053" W (1.50mm x 1.35mm)
- Height (Max)：0.020" (0.50mm)
- Package / Case：6-XFDFN
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for EMI8041MUTAG
Common Mode Chokes Overview
The EMI8041MUTAG is a common mode filter circuit from onsemi, designed for differential signaling applications. It integrates ESD protection with a common mode choke in a single package. The device supports data rates up to 5 Gbps and features a common mode capacitance of 0.5 pF. It is housed in an XDFN-10 surface-mount package, suitable for space-constrained designs requiring signal integrity and transient protection.
Common Mode Chokes Feature Summary
- Integrates common mode filtering with electrostatic discharge protection
- Optimized for high-speed differential signaling interfaces
- Ultra-low common mode capacitance preserves signal integrity
Common Mode Chokes Applications
- High-speed USB connections
- DisplayPort interfaces
- HDMI signal lines
Common Mode Chokes Procurement Notes
Verify the complete part number including suffixes against official onsemi documentation to ensure correct packaging and tape/reel specifications. Confirm RoHS compliance status directly from the latest datasheet revision. Cross-reference manufacturer codes with authorized distributors to avoid counterfeit components. Ensure storage conditions align with moisture sensitivity level requirements specified in the product data sheet.
Common Mode Chokes Selection Notes
Select this component when both EMI suppression and ESD protection are required in a single footprint. The low capacitance value makes it suitable for high-bandwidth digital video and data links where signal distortion must be minimized. Compare pinout compatibility with existing PCB layouts before integration.
Common Mode Chokes Part Context
This component belongs to the EMI804x series, which represents onsemi's family of integrated common mode filters with built-in ESD protection. These devices address the industry need for compact solutions that combine noise filtering and transient voltage suppression for modern high-speed interface standards.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the EMI804x family such as EMI8042MUTAG if additional channels are needed. Verify pin-to-pin compatibility and electrical parameter equivalence before substituting with other manufacturers' offerings.
Common Mode Chokes FAQ
What is the maximum data rate supported by the EMI8041MUTAG?
The device is rated for differential signaling at speeds up to 5 Gbps.
Does the EMI8041MUTAG include ESD protection?
Yes, it integrates electrostatic discharge protection alongside its common mode filtering capabilities.
