EMIF02-SPK01M6

Overview

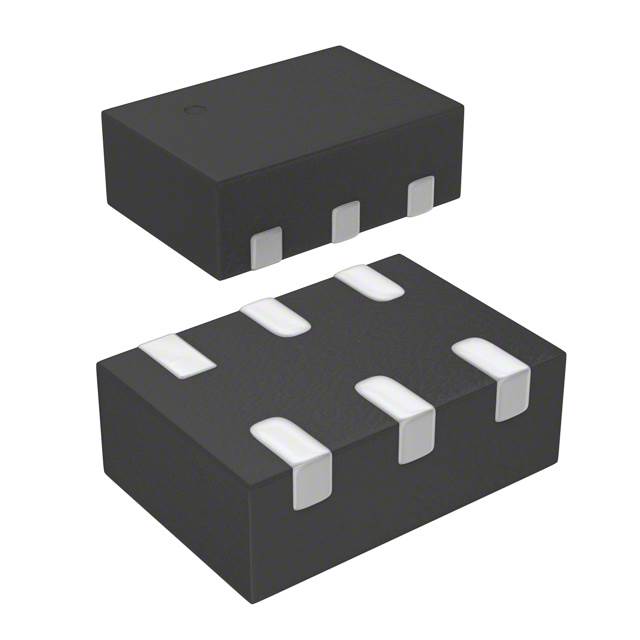

The EMIF02-SPK01M6 is a second-order low-pass EMI/RFI filter utilizing RC Pi topology. It features two channels with R = 10 Ohms and C = 220 pF per line. The component is housed in a 6-UFDFN package measuring 1.45mm x 1.00mm x 0.6mm max height, with a 0.5mm pitch.

Feature Summary

• Symmetrical I/O low-pass filtering design
• High efficiency in EMI suppression
• Minimal PCB footprint consumption

Applications

• Interface line filtering for electronic systems
• Suppression of electromagnetic interference in consumer devices
• Noise reduction in signal transmission lines

Procurement Notes

Verify the obsolete status indicated by STMicroelectronics before procurement planning. Confirm the specific suffix M6 matches the required tape and reel packaging configuration. Ensure compatibility with the 6-UFDFN footprint dimensions during final assembly validation.

Selection Notes

Select this component for applications requiring symmetrical noise filtering on dual interface lines. The compact 1.0 mm x 1.45 mm size suits space-constrained designs. Verify that the 10 Ohm resistance and 220 pF capacitance values align with the target frequency attenuation requirements.

Part Context

This device belongs to the IPAD series from STMicroelectronics. It is categorized as a passive component within the EMI/RFI filters subcategory. The technology relies on an integrated RC network structure rather than discrete LC components.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
