EMIF02-USB03F2

Overview

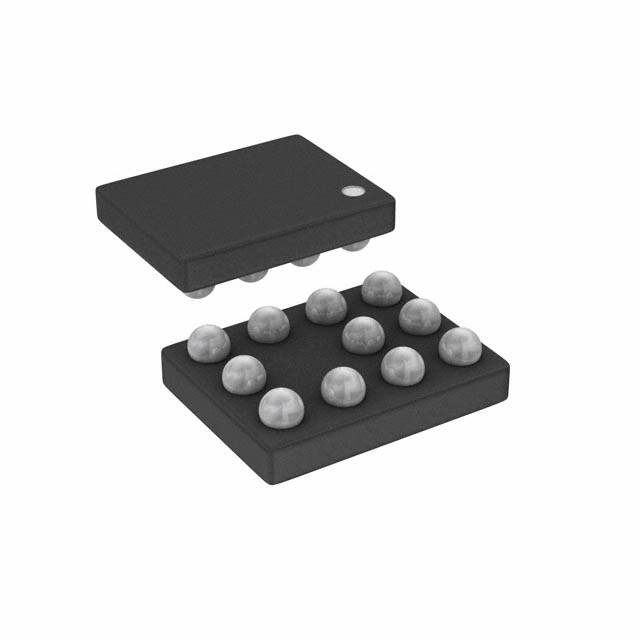

The EMIF02-USB03F2 is a highly integrated array designed to suppress EMI/RFI noise for USB OTG ports. It features a 2-line low-pass filter and 2-line ESD protection in an 11-WFBGA FCBGA package. Dimensions are 1.94mm x 1.44mm with a height of 0.70mm. The device operates with a minimum breakdown voltage of 14V, has 11 terminals, supports 2 circuits, and offers a bandwidth of 200MHz.

Feature Summary

• Highly integrated array for suppressing EMI/RFI noise in USB OTG applications
• Includes 2-line low-pass filtering and 2-line ESD protection circuitry
• Flip-Chip packaging ensures package size equals die size for minimal PCB space occupation
• Lead-free construction with high reliability through monolithic integration

Applications

• USB On-The-Go (OTG) port noise suppression
• EMI/RFI filtering for interface lines
• ESD protection for external contacts

Procurement Notes

Verify component status as the EMIF02-USB03F2 is listed as obsolete by STMicroelectronics. Confirm availability through authorized distributors or secondary markets if procurement is required. Ensure compatibility with existing designs before sourcing replacement components.

Selection Notes

Select this component for applications requiring compact EMI filtering and ESD protection for USB interfaces. The Flip-Chip package minimizes board space. Consider the obsolete status when designing new products; evaluate alternative current-generation parts from the same family for long-term supply stability.

Part Context

This part belongs to the EMIF02 series of EMI filters and ESD protection devices from STMicroelectronics. These components are designed for high-efficiency noise suppression in portable electronics. The specific model targets USB OTG applications, combining filtering and protection in a single ultra-compact wafer-level package.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, consult STMicroelectronics for current equivalent recommendations or verify cross-reference data from official distributor channels.
