EMIF04-VID01F2

Overview

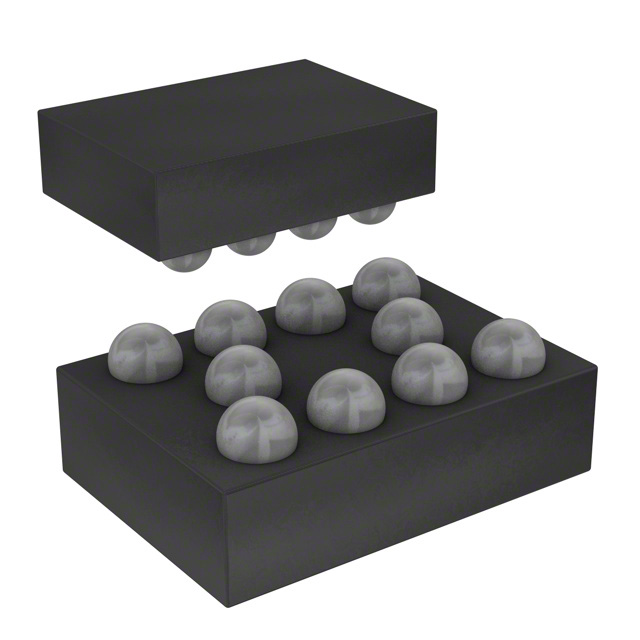

The EMIF04-VID01F2 is a four-channel integrated RC (Pi) low-pass EMI/RFI filter manufactured by STMicroelectronics. It features a resistance of 100 Ohms and capacitance of 16 pF per channel, with a maximum current rating of 10 mA. The device is housed in a 10-WFBGA package and operates within a temperature range of -40°C to 85°C.

Feature Summary

• Integrated four-line architecture for compact noise suppression
• RC Pi-filter topology for effective EMI/RFI attenuation
• Surface-mount design for automated assembly

Applications

• Video interface signal line filtering
• Display data bus noise reduction
• Portable electronic device EMI mitigation

Procurement Notes

Verify component availability as the part may be obsolete or discontinued. Confirm exact package marking and date codes upon receipt. Ensure storage conditions comply with moisture sensitivity levels if applicable. Cross-reference pinouts with official datasheets before integration into new designs.

Selection Notes

Select this component for applications requiring multi-channel low-pass filtering in video or high-speed digital interfaces. Evaluate thermal performance within the specified operating range. Consider the 10 mA current limit when designing drive circuits. Verify compatibility with PCB footprint requirements for the 10-WFBGA package.

Part Context

This component belongs to the EMIF series of EMI/RFI filters from STMicroelectronics. It shares functional similarities with other devices in the family, such as the EMIF08-VID01F2, which offers eight lines. The EMIF04 variant provides a balanced solution for systems needing multiple filtered channels in a small form factor.

Replacement Considerations

Check for direct substitutes within the EMIF series. Verify that alternative components match the 100 Ohm resistance and 16 pF capacitance values. Ensure compatible package dimensions and pin configurations for board-level replacement.
