Product Detailed Parameters
- Description：FILTR RC(PI) 100OHM/45PF ESD SMD
- Series：EMIF
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：6
- Center / Cutoff Frequency：-
- Attenuation Value：-34dB @ 900MHz ~ 1.8GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohm, C = 45pF
- ESD Protection：Yes
- Operating Temperature：-55°C ~ 150°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount, Wettable Flank
- Package / Case：12-WFDFN Exposed Pad
- Size / Dimension：0.118" L x 0.053" W (3.00mm x 1.35mm)
- Height：0.032" (0.80mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

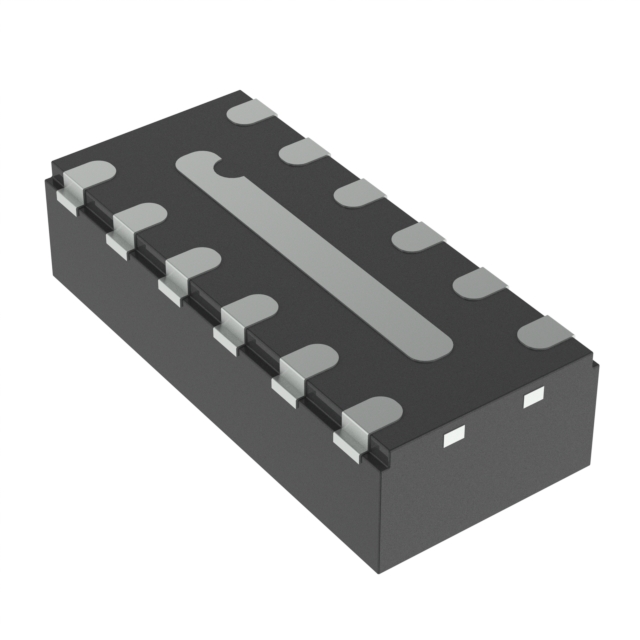

The EMIF06-1005MX12Y is an automotive-grade, highly integrated six-line EMI filter and ESD protection device from STMicroelectronics. It suppresses electromagnetic interference in systems exposed to noise while providing input pin protection against ESD surges up to 15 kV. The component achieves high filtering efficiency of -34 dB at frequencies between 900 MHz and 1.8 GHz. It features a QFN-12L package with dimensions of 3.00 x 1.35 x 0.75 mm and a maximum thickness of 0.8 mm. The device is AEC-Q101 qualified and complies with IEC 61000-4-2 Level 4 standards.
Feature Summary
- AEC-Q101 qualified for automotive reliability
- Symmetrical low-pass filter design for EMI suppression
- Integrated ESD protection meeting IEC 61000-4-2 Level 4
- Monolithic integration reduces parasitic elements
Applications
- Automotive electronic systems requiring EMI/RFI noise suppression
- Interfaces exposed to electromagnetic interference
- Applications needing integrated ESD surge protection on input pins
Procurement Notes
Verify the specific ordering suffix MX12Y to confirm the tape and reel packing type and ECOPACK2 lead-free compliance. Ensure the procurement matches the QFN-12L package variant. Confirm AEC-Q101 qualification status for automotive deployment requirements. Check current availability as stock levels may vary by distributor.
Selection Notes
Select this component when a six-channel solution is required for simultaneous EMI filtering and ESD protection. The low capacitance and symmetrical I/O characteristics suit high-speed data lines. The compact 3.00 x 1.35 mm footprint aids in dense PCB layouts. Verify that the 15 kV ESD rating meets the specific system's surge immunity needs.
Part Context
This part belongs to the EMIF06 family of multi-line EMI filters. It shares the core monolithic integration technology with other variants but differs in packaging and specific automotive qualification. The MX12Y suffix denotes the specific tape-and-reel configuration and environmental compliance grade within the STMicroelectronics portfolio.
Replacement Considerations
The EMIF06-1005M12 is a related non-automotive or different grade variant within the same family. Verify if the AEC-Q101 qualification is mandatory for the target application before substituting. Package dimensions remain consistent, but electrical ratings and environmental compliance must be cross-checked.
