EMIF06-HMC01F2

Overview

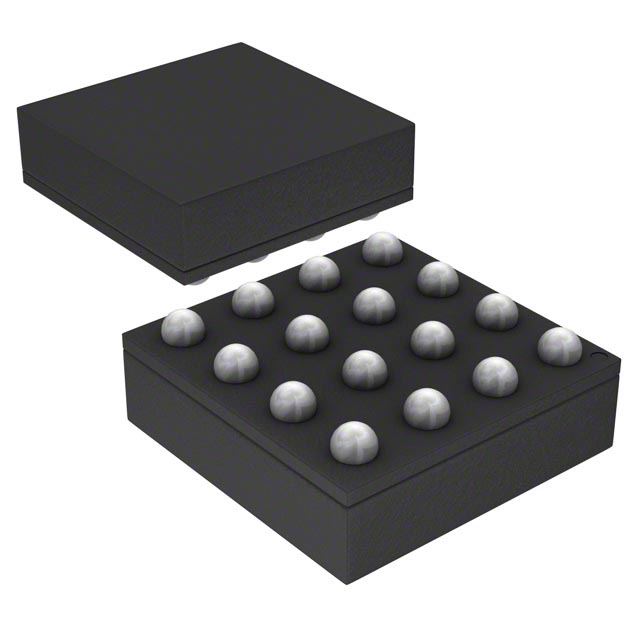

The EMIF06-HMC01F2 is a six-line EMI filter and ESD protection device from STMicroelectronics, designed for high-speed multimedia card interfaces. It integrates RC low-pass filtering with transient voltage suppression in a compact surface-mount package. The component provides simultaneous noise attenuation and electrostatic discharge protection for data lines. Key electrical characteristics include a maximum reverse standby voltage of 3V and a minimum breakdown voltage of 6V. It operates within a temperature range of -40°C to +85°C and features a 15-pin WFBGA/FCBGA footprint.

Feature Summary

• Integrates six-channel EMI filtering with ESD protection for high-speed data lines
• Provides simultaneous suppression of electromagnetic interference and electrostatic discharge events
• Designed for surface-mount installation in space-constrained mobile applications

Applications

• High Speed MultiMediaCard port filtering
• Mobile phone data line protection
• Communication systems requiring EMI/RFI noise suppression

Procurement Notes

Verify the specific suffix (e.g., F2) against the latest manufacturer datasheet CD00050027 to ensure correct pinout and electrical specifications. Confirm RoHS compliance status and check for any product change notices or obsolescence announcements prior to finalizing procurement plans.

Selection Notes

Select this component when designing circuits for high-speed multimedia card interfaces that require integrated EMI filtering and ESD protection. Ensure the system voltage does not exceed the maximum reverse standby voltage. Verify that the 15-pin WFBGA package dimensions fit the available PCB real estate and thermal requirements.

Part Context

This part belongs to the EMIF series of highly integrated arrays from STMicroelectronics. These components are engineered to replace discrete LC or RC networks, reducing board space and assembly complexity. The EMIF06-HMC01F2 specifically targets applications involving high-speed data transmission where signal integrity and component protection are critical.

Replacement Considerations

Public confirmed substitute: EMIF06-HMC02F2.
