Product Detailed Parameters
- Description：FILTER RC(PI) 40 OHMS ESD SMD
- Series：IPAD™
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：6
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：40
- Values：R = 40Ohms, C = 7.5pF
- ESD Protection：Yes
- Operating Temperature：-30°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount

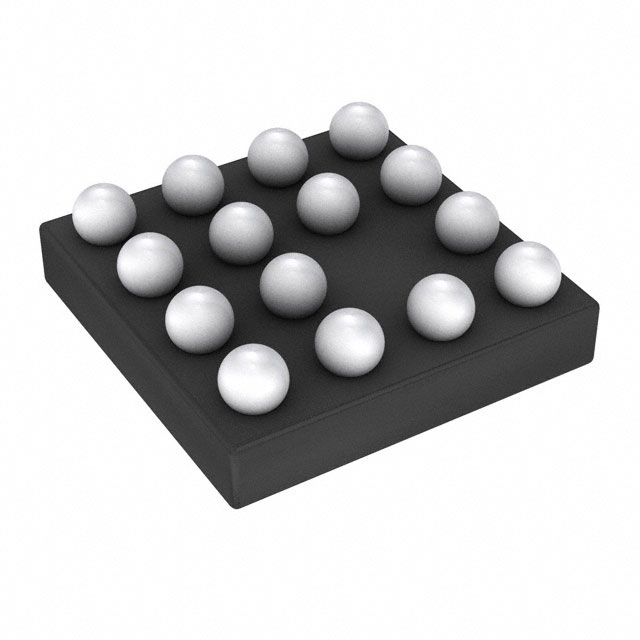

- Package / Case：15-UFBGA, FCBGA
- Size / Dimension：0.061" L x 0.061" W (1.54mm x 1.54mm)
- Height：0.217" (5.50mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview
The EMIF06-USD14F3 is a surface-mount EMI filter and ESD protection device from STMicroelectronics, utilizing IPAD technology. It features a complex array configuration with six channels, housed in a 15-UFBGA/FCBGA package measuring 1.58 x 1.58 mm. The component operates within a temperature range of -30°C to +85°C. Key electrical parameters include a maximum reverse standby voltage of 3V, a minimum breakdown voltage of 6V, and a maximum reverse leakage current of 100nA at 1mA test current.
Feature Summary
- Integrates RC (Pi) second-order low-pass filtering for effective EMI rejection
- Provides ESD protection compliant with IEC standards
- Utilizes monolithic integration to reduce parasitic elements
- Designed for high reliability in mobile device data lines
Applications
- Data lines for mobile devices
- USB 2.0 high-speed data line protection
- Mini and micro SD card interfaces
Procurement Notes
Verify the current lifecycle status before procurement, as multiple sources indicate this part may be obsolete or scheduled for discontinuation. Confirm availability through authorized distributors, as stock levels vary significantly across platforms. Ensure the specific suffix matches design requirements, noting that packaging quantities are typically provided in reels. Cross-reference datasheets for any recent product change notices affecting specifications or compliance.
Selection Notes
Select this component for applications requiring integrated EMI filtering and ESD protection in compact form factors. The 15-pin UFBGA package suits space-constrained designs. Consider the 40-ohm resistance and 7.5pF capacitance values for impedance matching in USB 2.0 or SD card interfaces. Verify thermal performance within the specified operating range and ensure compatibility with surface mount assembly processes.
Part Context
Part of the EMIF06 series from STMicroelectronics, designed for portable electronics. This specific model focuses on high-speed data line protection. It belongs to the IPAD family, which integrates passive components into a single chip to save PCB area. Similar parts in the series offer varying channel counts and interface compatibilities for different mobile connectivity standards.
Replacement Considerations
Publicly confirmed substitute part numbers were not identified in the provided source material. Users should consult official STMicroelectronics documentation for recommended alternatives or obsolescence management plans.
