EMIF10-COM01F2

Overview

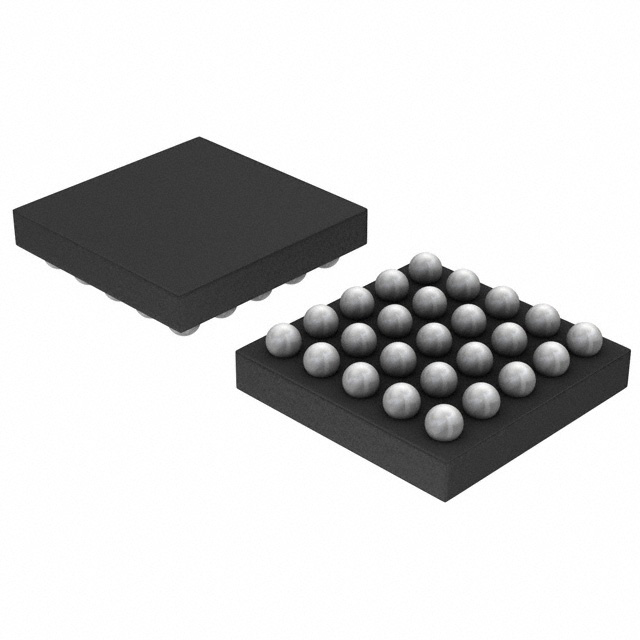

The EMIF10-COM01F2 is a 10-line IPAD EMI filter with integrated ESD protection manufactured by STMicroelectronics. It utilizes an RC(PI) network configuration featuring 200 Ohm resistance and 45 pF capacitance per line. The component is housed in a 25-WFBGA (FCBGA) package with 25 pins. It operates within a temperature range of -40°C to 85°C and is available in Tape & Reel packaging.

Feature Summary

• Integrates EMI/RFI noise suppression with electrostatic discharge protection for high-density signal lines
• Employs RC(PI) filtering architecture to maintain signal integrity while attenuating interference
• Designed for compact surface-mount applications requiring robust multi-line protection

Applications

• Common mode interfaces requiring simultaneous EMI filtering and ESD protection
• High-speed data communication ports susceptible to radio frequency interference
• Mobile devices and portable electronics with limited board space for discrete components

Procurement Notes

Verify current availability status as the component is scheduled for obsolescence and will be discontinued by the manufacturer. Confirm that the specific ordering suffix matches the required package type, such as Tape & Reel or Cut Tape, before finalizing procurement orders to ensure compatibility with existing assembly processes.

Selection Notes

Select this component when a single solution is needed for both electromagnetic interference suppression and electrostatic discharge protection on common mode lines. Ensure the design accommodates the 25-pin WFBGA footprint and verifies thermal requirements against the specified operating temperature range of -40°C to 85°C for reliable performance.

Part Context

This device belongs to the IPAD series from STMicroelectronics, which specializes in highly integrated arrays for noise suppression. The EMIF10 variant specifically addresses ten-line configurations, offering a consolidated alternative to discrete filter and protection components in complex electronic systems.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Due to the scheduled obsolescence status, engineers should evaluate alternative multi-line filter solutions with similar electrical characteristics and pinout compatibility for long-term production viability.
