EP16E7E2H-26.000M TR

Oscillators Overview

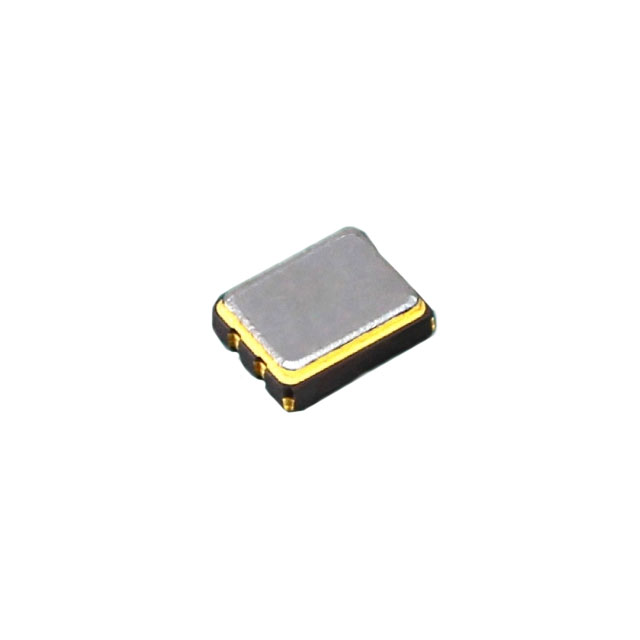

The EP16E7E2H-26.000M TR is a standard quartz crystal clock oscillator manufactured by Ecliptek. It operates at a nominal frequency of 26.000MHz with a frequency stability of ±25ppm across the operating temperature range of -20°C to +70°C. The device utilizes an LVCMOS output interface and requires a nominal supply voltage of 1.8Vdc. It is housed in a compact 3.2mm x 2.5mm surface-mount ceramic package with four pads. Key electrical specifications include a maximum current consumption of 4mA, a rise/fall time of 4ns maximum, and a duty cycle of 50% ±5%. The oscillator features a tri-state output for enable/disable functionality.

Oscillators Feature Summary

• LVCMOS output interface compatible with standard digital logic
• Tri-state output capability allowing enable and disable control
• Compact ceramic surface-mount construction for space-constrained designs

Oscillators Applications

• General-purpose clock signal generation in embedded systems
• Timing reference for microprocessors and microcontrollers
• Data communication interfaces requiring stable clock sources

Oscillators Procurement Notes

Verify that the specific ordering suffix matches the required frequency tolerance and temperature range specifications. Confirm the package dimensions align with the PCB footprint design. Ensure the supply voltage requirements are met by the target system power rail. Check regulatory compliance documentation for RoHS and REACH standards relevant to the deployment region.

Oscillators Selection Notes

Select this component when a low-profile, cost-effective clock source is required for 26MHz applications. Consider the ±25ppm stability requirement against system timing constraints. Evaluate the 1.8V supply voltage compatibility with the target logic family. Assess the thermal performance within the specified -20°C to +70°C operational range.

Oscillators Part Context

This part belongs to Ecliptek's standard clock oscillator series, designed for general electronic applications. It represents a surface-mount solution replacing through-hole alternatives in modern PCB layouts. The product line focuses on providing reliable timing signals with minimal board space utilization.

Oscillators Replacement Considerations

Cross-reference with other 26MHz LVCMOS oscillators in the 3.2x2.5mm package format. Verify pin-to-pin compatibility if substituting with devices from different manufacturers. Ensure equivalent frequency stability and supply voltage specifications are maintained.
