EP2AGX260EF29C6

Field Programmable Gate Array Overview

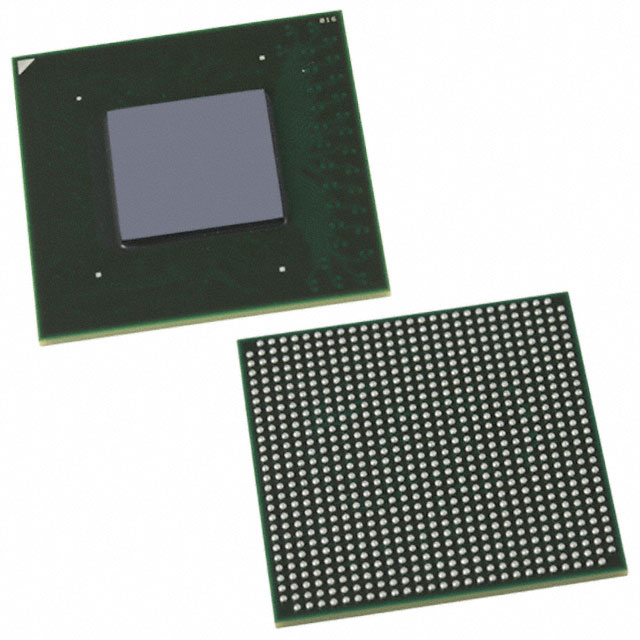

The EP2AGX260EF29C6 is a high-performance Field Programmable Gate Array belonging to the Arria II GX family, manufactured by Altera. It features 10260 Adaptive Logic Modules and supports up to 372 I/O pins within a 780-pin FBGA package. The device integrates 11.48 Mbits of embedded memory and includes 16 transceivers capable of data rates ranging from 600 Mb/s to 6.375 Gb/s. Operating at core voltages between 1.5 V and 3.3 V, it functions reliably within a commercial temperature range of 0°C to +70°C.

Field Programmable Gate Array Feature Summary

• Integrates 16 high-speed serial transceivers for multi-gigabit communication applications
• Provides extensive logic capacity through over 100,000 adaptive logic modules
• Supports diverse interface standards via configurable I/O banks
• Includes substantial on-chip memory resources for data buffering

Field Programmable Gate Array Applications

• High-speed networking equipment requiring multi-gigabit serial interfaces
• Industrial automation control systems
• Test and measurement instrumentation
• Medical imaging system processing units

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance requirements as original specifications may vary. Check for moisture sensitivity handling protocols prior to assembly. Validate pinout compatibility with existing PCB footprints. Review export control classifications if applicable to your region.

Field Programmable Gate Array Selection Notes

Compare against other Arria II GX variants based on specific I/O count and package size needs. Ensure thermal management solutions accommodate the power dissipation profile. Verify that the available embedded memory meets buffer requirements. Consider future availability constraints when designing long-term production runs.

Field Programmable Gate Array Part Context

This component is part of the Arria II GX series, designed for cost-sensitive applications requiring moderate performance. It shares architectural similarities with larger devices in the lineup but offers reduced logic density and fewer transceivers compared to higher-end models like the EP2AGX260FF35C6.

Field Programmable Gate Array Replacement Considerations

Public confirmed substitute part numbers are not available. As this component is discontinued, engineers must evaluate newer Intel FPGA families or alternative vendors for direct pin-to-pin replacements.
