EP2AGX260FF35C6

Field Programmable Gate Array Overview

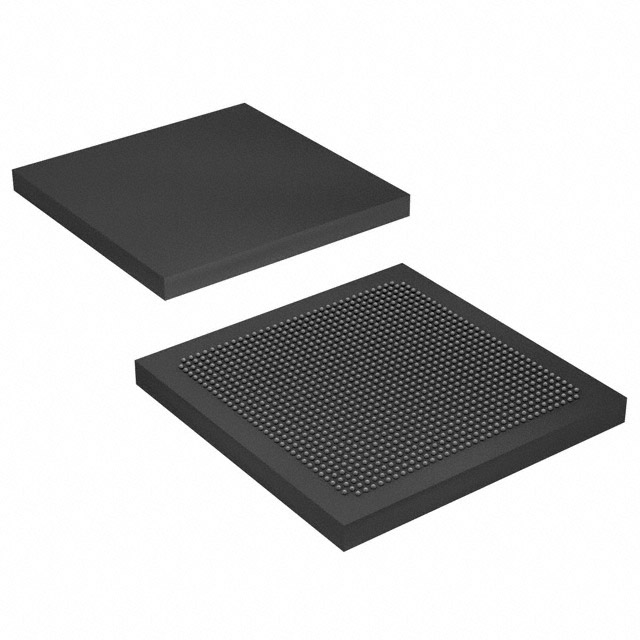

The EP2AGX260FF35C6 is an Arria II GX Field Programmable Gate Array manufactured by Altera. It features 10,260 Adaptive Logic Modules (ALMs) and 244,188 Logic Elements within a 1152-pin FBGA package. The device includes 11.48 Mbits of embedded memory and supports up to 612 I/Os. It integrates 16 transceivers capable of data rates from 600 Mb/s to 6.375 Gb/s. Operating voltages range from 1.5 V to 3.3 V, with a maximum operating frequency of 390 MHz. The component operates between 0°C and +70°C.

Field Programmable Gate Array Feature Summary

• Integrates 16 high-speed serial transceivers for multi-gigabit communication applications.
• Provides extensive logic capacity through over 10,000 adaptive logic modules for complex digital designs.
• Includes substantial embedded memory resources to support internal data buffering and processing.

Field Programmable Gate Array Applications

• High-performance networking infrastructure equipment
• Industrial automation control systems
• Medical imaging signal processing

Field Programmable Gate Array Procurement Notes

Verify the specific suffix C6 against official datasheets to confirm commercial temperature ratings and lead-free status. Confirm current lifecycle status as discontinued or obsolescence notices may apply. Ensure compatibility with existing PCB footprints and power delivery networks before procurement.

Field Programmable Gate Array Selection Notes

Compare this model against other Arria II GX variants based on required ALM counts and I/O availability. Verify that the 1152-pin FBGA package fits the target board space constraints. Check if the 6.375 Gb/s transceiver speed meets system bandwidth requirements without needing higher-tier devices.

Field Programmable Gate Array Part Context

This component belongs to the Arria II GX family, designed for cost-sensitive, high-volume applications requiring moderate performance. It sits below the Arria II GT series in terms of transceiver speed but offers significant logic density compared to Cyclone families.

Field Programmable Gate Array Replacement Considerations

Official direct replacements are not currently documented. Consider Intel/Altera Arria II GX models with similar pin counts or migrate to newer Agilex families for long-term supply assurance.
