EP2AGX95DF25C6G

Field Programmable Gate Array Overview

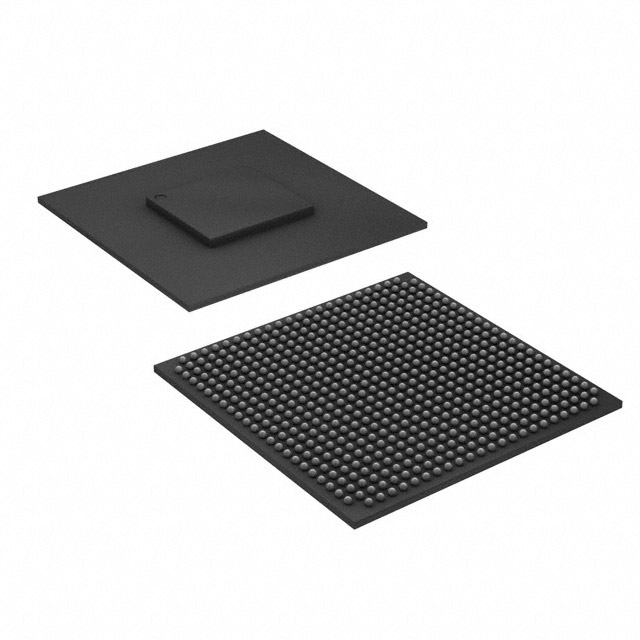

The EP2AGX95DF25C6G is an Arria II GX field-programmable gate array manufactured by Altera. It features 89,178 logic elements and 3,747 adaptive logic modules within a 572-ball FBGA package. The device includes 6.52 Mbits of embedded memory and supports up to 260 I/Os. It integrates eight transceivers capable of data rates up to 1.25 Gb/s. Operating voltage ranges from 0.87 V to 0.93 V, with a maximum operating frequency of 390 MHz. The component operates between 0°C and +85°C.

Field Programmable Gate Array Feature Summary

• Supports high-speed serial communication via integrated transceivers
• Provides extensive programmable logic resources for complex digital designs
• Includes substantial embedded memory blocks for data storage and processing

Field Programmable Gate Array Applications

• High-speed networking equipment
• Industrial automation control systems
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix C6G against official datasheets to confirm commercial temperature range and package details. Confirm RoHS compliance status through manufacturer documentation. Check for obsolescence notices or lifecycle changes before procurement planning.

Field Programmable Gate Array Selection Notes

Compare logic density and transceiver count against project requirements. Ensure the 572-ball FBGA package fits the PCB layout constraints. Verify that the 0°C to +85°C operating range meets environmental specifications for the target application environment.

Field Programmable Gate Array Part Context

This component belongs to the Arria II GX family, designed for cost-optimized applications requiring moderate performance. It utilizes a 40-nm process technology to balance power consumption and logic capacity. The series targets markets needing reliable FPGA solutions with established IP libraries.

Field Programmable Gate Array Replacement Considerations

Check for Intel/Altera recommended upgrades such as Arria 10 or Cyclone V devices. Verify pin-to-pin compatibility if direct replacement is required. Consult official substitution guides for architectural differences.
