EP3SL200F1517I4N

Field Programmable Gate Array Overview

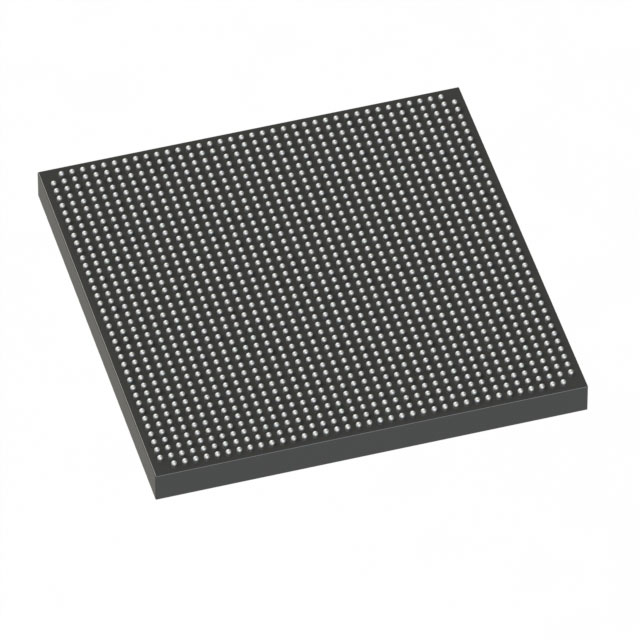

The EP3SL200F1517I4N is a Stratix III Field Programmable Gate Array (FPGA) manufactured by Altera. It features 200,000 logic elements and 80,000 Adaptive Logic Modules (ALMs). The device includes 10.4 Mbit of embedded memory and supports 976 I/Os. It operates within a voltage range of 1.2 V to 3.3 V and is housed in a 1517-pin FBGA package. The component is designed for high-performance digital logic applications requiring substantial programmable resources.

Field Programmable Gate Array Feature Summary

• Contains 200,000 logic elements and 80,000 ALMs for complex logic implementation
• Provides 10.4 Mbit of total embedded memory capacity
• Supports 976 input/output pins for extensive connectivity
• Operates with supply voltages between 1.2 V and 3.3 V

Field Programmable Gate Array Applications

• High-density digital signal processing systems
• Complex control logic for industrial automation
• Prototyping for high-performance communication interfaces

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I4N' against official Altera documentation to confirm temperature grade and moisture sensitivity levels. Ensure compatibility with existing board designs regarding the 1517 FBGA footprint and pinout configuration before procurement.

Field Programmable Gate Array Selection Notes

Select this model when 200K logic elements and 976 I/Os are required. Compare against the EP3SL200F1517C4G or EP3SL200F1517I4G variants if different commercial/industrial temperature ranges or RoHS compliance statuses are needed for the specific application environment.

Field Programmable Gate Array Part Context

This part belongs to the Stratix III family, which utilizes an enhanced architecture for improved performance and power efficiency compared to previous generations. The EP3SL200 variant represents a mid-range density option within this series, balancing resource availability with package constraints.

Field Programmable Gate Array Replacement Considerations

Direct replacements include EP3SL200F1517I4G and EP3SL200F1517C4G. Verify that the suffix differences correspond to acceptable variations in operating temperature range and regulatory compliance for the target deployment.
