EP4CGX75DF27I7

Field Programmable Gate Array Overview

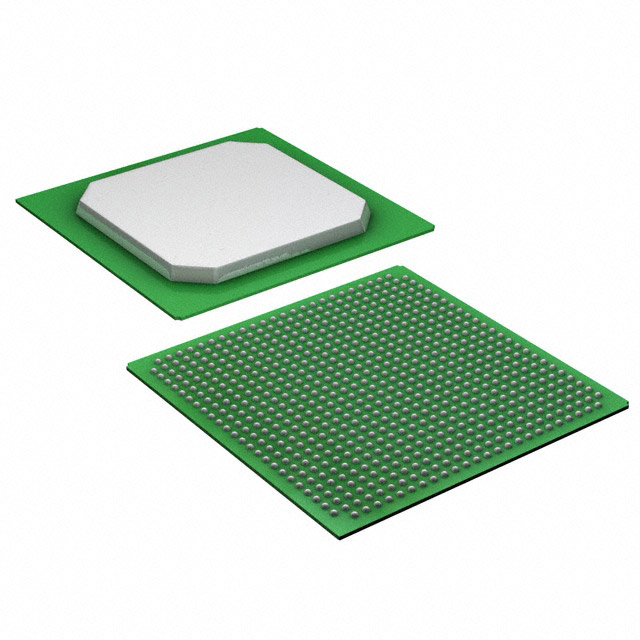

The EP4CGX75DF27I7 is a Cyclone IV GX Field Programmable Gate Array (FPGA) manufactured by Altera. It features 73,920 logic elements and 4,620 LABs/CLBs within a 672-BGA package. The device includes 4,257,792 total RAM bits and supports 310 I/O pins. Operating voltage ranges from 1.16V to 1.24V, with a junction temperature range of -40°C to 100°C. It is RoHS compliant and classified under ECCN 3A991D.

Field Programmable Gate Array Feature Summary

• Supports high-speed serial communication via integrated transceivers
• Provides extensive embedded memory resources for data buffering
• Offers flexible I/O configurations for system integration

Field Programmable Gate Array Applications

• Industrial control systems requiring robust programmable logic
• Communication infrastructure equipment
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I7' confirms industrial temperature rating (-40°C to 100°C). Confirm RoHS compliance status as some variants in this family may differ. Check for any recent Product Change Notifications regarding labeling or assembly sites. Ensure compatibility with Quartus software versions supporting the Cyclone IV GX family.

Field Programmable Gate Array Selection Notes

Compare against EP4CGX75CF23I7N for pin count differences if board space is constrained. Consider EP4CGX110DF27I7 for higher logic density with identical packaging. Verify power supply requirements match the 1.16V-1.24V core voltage specification. Assess thermal management needs for the 672-FBGA package in enclosed environments.

Field Programmable Gate Array Part Context

This component belongs to the Cyclone IV GX family, designed for cost-sensitive applications requiring Gigabit Transceiver capabilities. It bridges the gap between standard Cyclone IV devices and higher-end Stratix families, offering dedicated high-speed serial interfaces suitable for backplane and point-to-point links.

Field Programmable Gate Array Replacement Considerations

EP4CGX75DF27C8N offers commercial temperature range instead of industrial. EP4CGX110DF27I7 provides increased logic capacity in the same package.
