EP4SGX530KF43I4N

Field Programmable Gate Array Overview

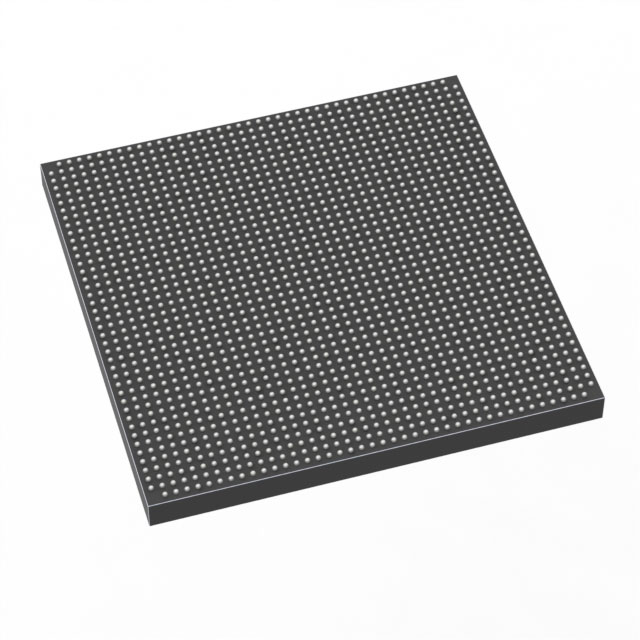

The Altera EP4SGX530KF43I4N is a Stratix IV GX Field Programmable Gate Array (FPGA) designed for high-performance digital logic applications. It features 531,200 Logic Elements and 21,248 Adaptive Logic Modules within its fabric. The device integrates 26.73 Mbits of embedded memory and supports up to 920 I/O pins. It operates at a core voltage of 900 mV with a maximum frequency of 600 MHz. The component utilizes an FBGA-1932 package and supports data rates from 600 Mb/s to 8.5 Gb/s via its transceivers.

Field Programmable Gate Array Feature Summary

• Stratix IV GX architecture with 531,200 LEs and 21,248 LABs
• Integrated 26.73 Mbits of on-chip memory resources
• Supports high-speed serial data transmission up to 8.5 Gb/s
• Industrial temperature range operation from -40°C to +85°C

Field Programmable Gate Array Applications

• High-speed telecommunications infrastructure equipment
• Enterprise networking switches and routers
• Data center interconnect solutions
• Test and measurement instrumentation systems

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'N' against official Altera documentation to confirm if it denotes a non-RoHS compliant variant or a specific manufacturing lot code, as standard datasheets may not explicitly detail this character's functional impact. Confirm availability status through authorized distributors, as lead times vary by region and stock levels.

Field Programmable Gate Array Selection Notes

Select this model when requiring the specific pin count and I/O density provided by the F43 package size. Ensure the design accommodates the 900 mV core voltage requirements and thermal dissipation needs associated with the FBGA-1932 form factor. Verify that the target application benefits from the Stratix IV GX transceiver capabilities for high-speed serial links.

Field Programmable Gate Array Part Context

This part belongs to the Altera Stratix IV GX family, which is optimized for wireline communications and high-speed data processing. The 'GX' designation indicates the inclusion of high-speed Gigabit Transceivers, distinguishing it from other Stratix IV variants focused primarily on general-purpose logic or DSP functions.

Field Programmable Gate Array Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consider consulting Altera's migration guides for next-generation families such as Arria or Agilex for long-term supply chain stability.
