EPC2066

Overview

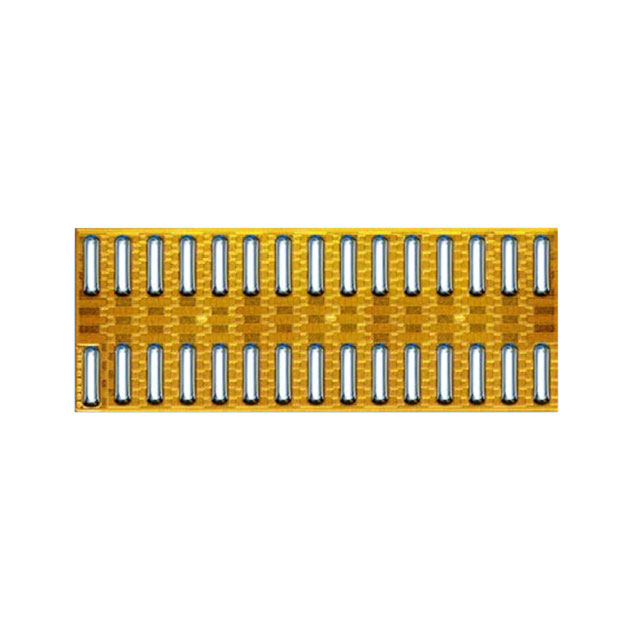

The EPC2066 is an enhancement-mode gallium nitride field-effect transistor (eGaN FET) manufactured by Efficient Power Conversion. It features a 40 V drain-source voltage rating and a typical on-resistance of 1.1 mΩ at 5V gate drive. The device supports a continuous drain current of 90A and a pulse current of 639A. With a maximum gate-source voltage of +6V/-4V and a threshold voltage of 2.5V, it operates within a junction temperature range of -40°C to 150°C. The component utilizes a surface-mount mold package with a footprint area of 13.9 mm², enabling high power density in compact designs.

Feature Summary

• Zero reverse recovery charge eliminates body diode switching losses inherent in silicon MOSFETs.
• Ultra-small 13.9 mm² footprint allows for significantly higher power density compared to silicon alternatives.
• Compatible with standard MOSFET drivers due to enhanced mode operation and low gate charge.
• High-frequency capability supports efficient operation in MHz-range DC/DC converters.

Applications

• Secondary side synchronous rectification in 48V to 12V DC/DC converters for AI servers.
• High-density motor drives operating between 24V and 32V.
• Silver box data center server power supplies.
• LLC resonant converters for high-power computing applications.

Procurement Notes

Verify the specific ordering suffix required for your production volume, as the EPC2066 is available in tape and reel, cut tape, and Digi-Reel formats. Confirm that the design environment supports the thermal management requirements for a 13.9 mm² GaN die. Ensure compatibility with the eGaN First Time Right layout guidelines to minimize parasitic inductance. Check for RoHS3 compliance status if required by regional regulations. Validate that the 40V rating meets the system's transient voltage specifications.

Selection Notes

Select the EPC2066 when space constraints are critical and efficiency at high frequencies is required. It is suitable for replacing silicon MOSFETs in secondary-side rectification where low Rds(on) reduces conduction losses. Consider this device for 40V-60V input ranges stepping down to 12V. Evaluate the trade-off between the small footprint and the need for precise PCB layout to manage switching noise. Compare against previous generation devices like the EPC2024 for improved performance per unit area.

Part Context

The EPC2066 belongs to the fifth-generation eGaN FET family from Efficient Power Conversion. It represents a 27% reduction in on-resistance compared to the fourth-generation EPC2024 device within the same physical footprint. This advancement aligns with industry trends toward miniaturization in data center and AI infrastructure power systems. The device complements other EPC components like the EPC2071 in complete converter solutions.

Replacement Considerations

The EPC2066 is designed to be pin-compatible with the EPC2024, allowing for direct footprint substitution in existing designs. Designers should verify that the gate drive voltage levels are compatible with the new device's threshold characteristics. Thermal analysis must be updated to reflect the different heat dissipation profile of the smaller GaN die compared to larger silicon packages.
