EPF10K100ABI600-2

Field Programmable Gate Array Overview

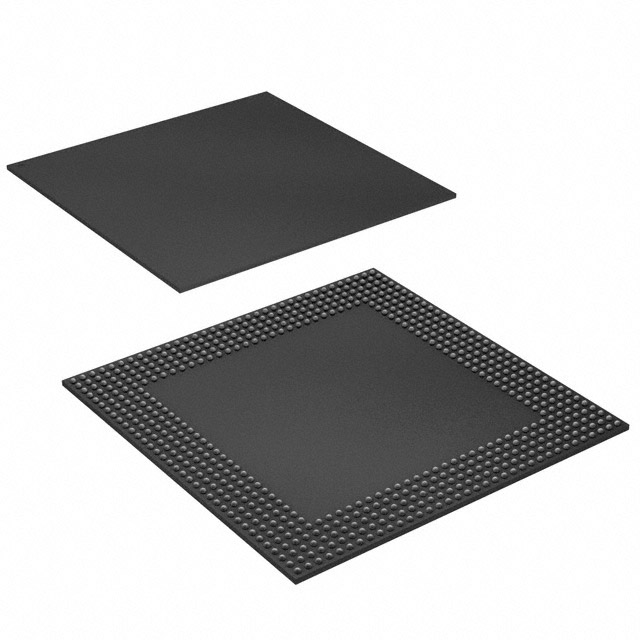

The Altera EPF10K100ABI600-2 is a Field Programmable Gate Array belonging to the FLEX 10KA embedded programmable logic device family. It features 4,992 Logic Elements organized into 624 Logic Array Blocks and includes 12 Embedded Array Blocks providing a total of 24,576 bits of embedded RAM. The device supports 406 user I/O pins and operates at a supply voltage of 3.3 V. It is housed in a 600-pin FineLine BGA package with a 1 mm pitch. The component supports an industrial temperature range from -40°C to +85°C and includes built-in JTAG boundary-scan test circuitry compliant with IEEE Std. 1149.1-1990.

Field Programmable Gate Array Feature Summary

• Supports MultiVolt I/O interface allowing operation with 5.0-V tolerant input pins for 3.3-V PCI compliance
• Enables System-on-a-Programmable-Chip integration through embedded array megafunctions and general logic arrays
• Features FastTrack Interconnect continuous routing structure for predictable interconnect delays
• Includes dedicated carry and cascade chains for high-speed arithmetic and wide-fan-in logic functions

Field Programmable Gate Array Applications

• PCI Local Bus Specification compliant peripheral interfaces
• Digital signal processing and microcontroller implementations
• Complex state machines and address decoders
• High-speed counters and adders using dedicated carry chains

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to end-of-life status. Confirm RoHS compliance requirements as this specific variant may not meet current environmental standards. Ensure handling procedures account for moisture sensitivity level 3 classification during storage and reflow soldering processes.

Field Programmable Gate Array Selection Notes

Select this model when 4,992 logic elements and 406 I/O pins are required within a 600-pin BGA footprint. Consider the FLEX 10KA series specifically for 5.0-V tolerant I/O capabilities needed for legacy bus interfacing. Evaluate pin compatibility with other FLEX 10K devices if board space optimization via FineLine BGA packages is necessary for future migration strategies.

Field Programmable Gate Array Part Context

This component belongs to the Altera FLEX 10K family, recognized as the industry's first embedded programmable logic devices. The FLEX 10KA sub-family extends functionality with 5.0-V tolerant inputs. The architecture combines embedded memory blocks with general-purpose logic arrays to facilitate system-level integration on a single chip, supporting both combinatorial and registered designs.

Field Programmable Gate Array Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the device is listed as discontinued, designers should evaluate modern FPGA families from Intel or alternative vendors for new designs requiring similar logic density and I/O counts.
