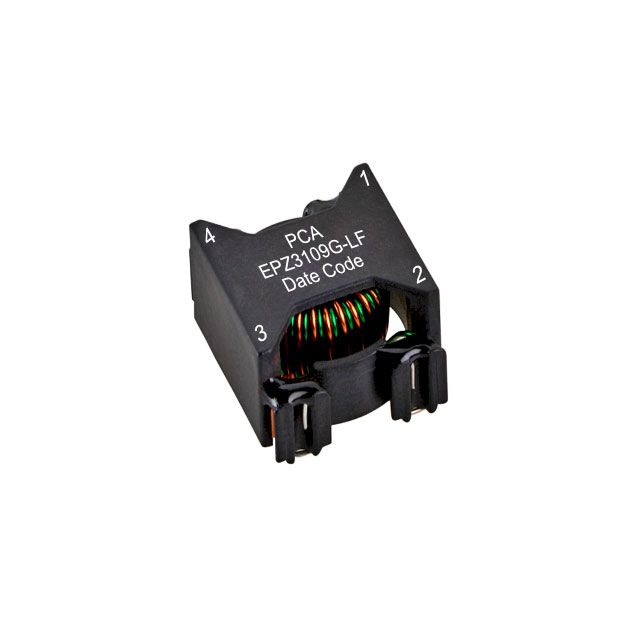

EPZ3109G-LF is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists PCA Electronics, Inc.. Its product description is CMC 2.5A 2LN 10 KOHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for EPZ3109G-LF
- Description：CMC 2.5A 2LN 10 KOHM SMD
- Series：EPZ-3109
- Mfr：PCA Electronics, Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.5A
- DC Resistance (DCR) (Max)：60mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.560" L x 0.520" W (14.22mm x 13.21mm)
- Height (Max)：0.350" (8.90mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：10 kOhms @ 1 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for EPZ3109G-LF
Common Mode Chokes Overview
The EPZ3109G-LF is a surface mount common mode choke manufactured by PCA Electronics, Inc. This component is designed for two-line applications and features a rated current of 2.5A with a DC resistance of 60mOhm. It provides an impedance of 10 kOhms at 1 MHz. The device is constructed for SMD mounting and is part of the company's portfolio of electromagnetic components.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Two-line common mode filtering capability
- High impedance performance at 1 MHz
Common Mode Chokes Applications
- Automotive electronic systems
- Transportation market applications
- Power over Ethernet (PoE) circuits
Common Mode Chokes Procurement Notes
Verify the specific datasheet version from PCA Electronics to confirm pinout and mechanical dimensions. Ensure the AEC-Q200 qualification status aligns with your automotive requirements. Cross-reference the 2.5A rating against your peak load conditions to prevent saturation. Confirm the 60mOhm DCR meets your thermal management specifications.
Common Mode Chokes Selection Notes
Select this component when a 2.5A current rating and 10kOhm impedance at 1MHz are required for noise suppression. Consider the surface mount package for PCB space constraints. Evaluate the low DC resistance for efficiency in power lines. Compare against other PCA magnetics if higher power or different form factors are needed.
Common Mode Chokes Part Context
PCA Electronics specializes in magnetics for automotive and transportation sectors. The EPZ series includes common mode chokes designed to meet strict reliability standards. These components support various power levels and interface requirements across industrial and consumer electronics markets.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult PCA Electronics directly for equivalent recommendations based on specific electrical and mechanical constraints.
