Product Detailed Parameters
- Description：RF FILTER 13GHZ 8SMD
- Series：-
- Mfr：Mini-Circuits
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：13GHz Center
- Bandwidth：14GHz
- Filter Type：-
- Ripple：-
- Insertion Loss：18.6dB
- Mounting Type：Surface Mount
- Package / Case：8-SMD, No Lead
- Size / Dimension：0.098" L x 0.098" W (2.50mm x 2.50mm)
- Height (Max)：0.035" (0.90mm)
Download product information
Overview

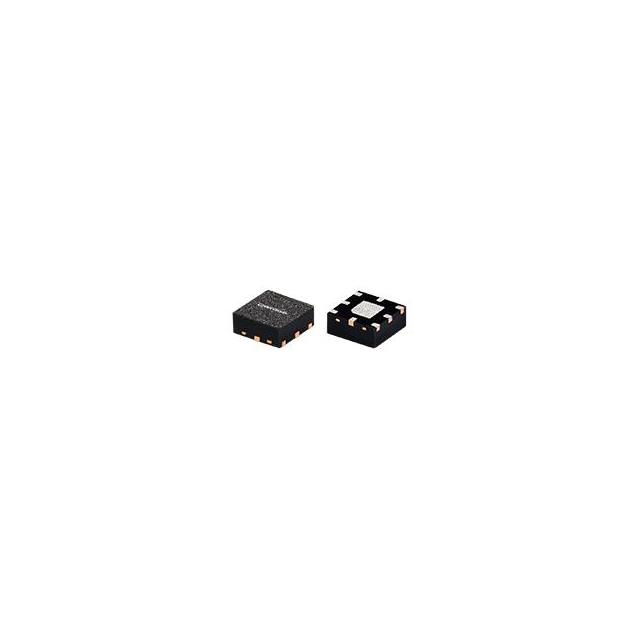

The Mini-Circuits EQY-15-24+ is a monolithic microwave integrated circuit (MMIC) gain equalizer designed for fixed slope compensation. It operates within a frequency range of 6000 to 20000 MHz and provides a nominal attenuation of 15.7 dB. The device utilizes a GaAs IPD MMIC process, integrating resistors, capacitors, and inductors on a single substrate. Packaged in the JV3002 surface-mount case style, it is supplied in tape and reel format for automated assembly.
Feature Summary
- Fixed slope equalization characteristic for signal amplitude correction
- GaAs IPD MMIC fabrication ensuring high repeatability
- Surface-mount design compatible with automated manufacturing
Applications
- RF front-end modules requiring slope compensation
- Microwave communication systems
- Test and measurement equipment calibration
Procurement Notes
Verify the specific datasheet revision and electrical parameter tolerances against your system requirements before procurement. Confirm that the JV3002 package dimensions align with your PCB footprint constraints. Ensure compatibility with standard reflow soldering profiles suitable for GaAs MMIC devices. Check for any specific handling precautions related to electrostatic discharge during assembly.
Selection Notes
Select this component when a fixed 15.7 dB slope over the 6-20 GHz band is required. Consider the GaAs technology for performance consistency. Evaluate the JV3002 package size against available board space. Compare insertion loss and return loss specifications from the official datasheet against system link budget requirements to ensure adequate signal integrity.
Part Context
This component belongs to the Mini-Circuits EQY series of MMIC gain equalizers. These devices are engineered to compensate for frequency-dependent gain variations in RF circuits. The series typically offers various slope values and bandwidths to suit different microwave applications, utilizing robust semiconductor processes for reliable operation in demanding environments.
Replacement Considerations
Consult official Mini-Circuits documentation for direct cross-references. Verify that any substitute part matches the 6000-20000 MHz frequency range and 15.7 dB slope specification. Ensure the replacement maintains the same package outline and pin configuration to avoid PCB redesign.
