ER801A_T0_00001

Single Diodes Overview

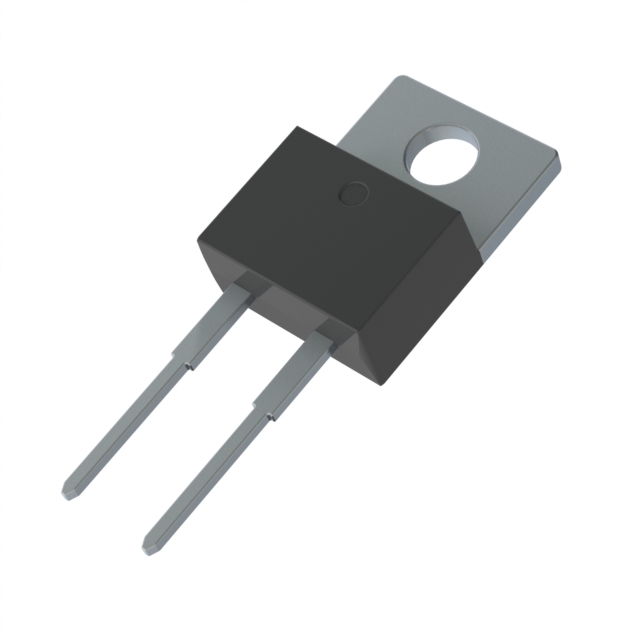

The ER801A_T0_00001 is a single-phase silicon rectifier diode manufactured by Panjit International Inc. It features an 8-ampere average forward current rating and a maximum repetitive peak reverse voltage of 150 volts. The component is housed in a TO-220AC through-hole package, designed for robust power handling applications. It operates within a junction temperature range of -55°C to +175°C, ensuring reliability under varying thermal conditions.

Single Diodes Feature Summary

• Utilizes high-efficiency silicon planar technology for stable rectification performance
• Engineered with low forward voltage drop characteristics to minimize conduction losses
• Constructed with molded epoxy case meeting UL flammability classification 94V-0

Single Diodes Applications

• General-purpose rectification in AC-to-DC power supply circuits
• Freewheeling protection in inductive load switching applications
• Bridge rectifier configurations in consumer electronics power adapters

Single Diodes Procurement Notes

Verify the complete part number including suffix _T0_00001 to ensure correct packaging and tape specifications. Confirm RoHS compliance status and specific binning requirements against the latest manufacturer datasheet before finalizing procurement orders to match design specifications.

Single Diodes Selection Notes

Select this component when a through-hole mounting solution is required for moderate current rectification tasks. The TO-220AC package provides adequate thermal dissipation for standalone operation without additional heatsinking in many standard environments. Ensure circuit voltage ratings remain below the 150V peak reverse limit.

Single Diodes Part Context

This device belongs to the ER series of general-purpose rectifiers from Panjit. It serves as a discrete semiconductor solution for converting alternating current to direct current in various electronic assemblies. The TO-220AC form factor distinguishes it from surface-mount alternatives in the same electrical class.

Single Diodes Replacement Considerations

Consult official cross-reference lists for verified equivalents. Generic replacements must match the 8A current, 150V voltage, and TO-220AC package constraints.
