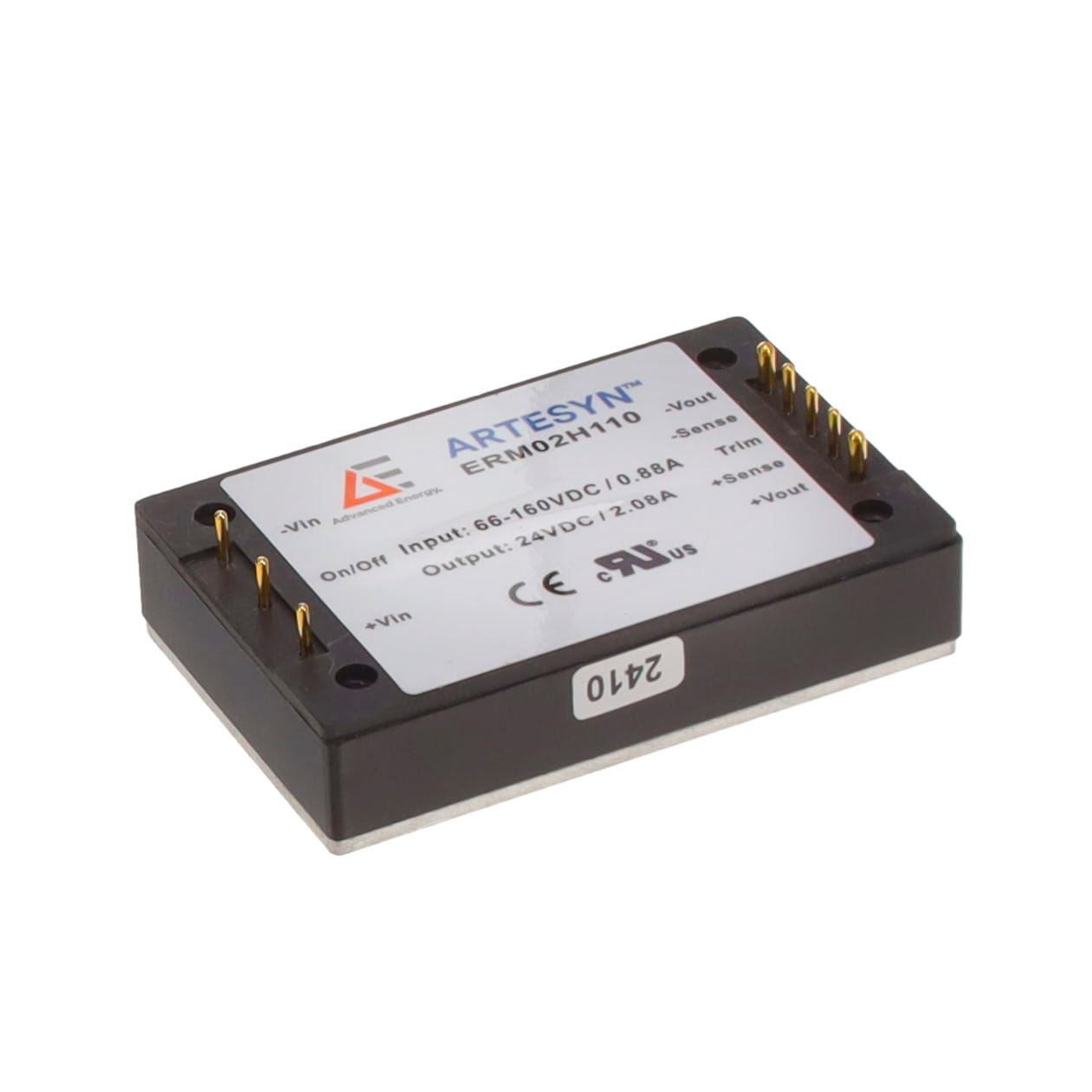

ERM02H110 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 24V 50W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for ERM02H110
- Description：DC DC CONVERTER 24V 50W
- Series：ERM50 (50W)
- Mfr：ARTESYN / Advanced Energy
- Package：Bulk
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：66V
- Voltage - Input (Max)：160V
- Voltage - Output 1：24V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：2.08A
- Power (Watts)：50 W
- Voltage - Isolation：3 kV
- Applications：ITE (Commercial), Railway
- Features：Remote On/Off, OCP, SCP, UVLO
- Operating Temperature：-40°C ~ 85°C
- Efficiency：91%
- Mounting Type：Through Hole
- Package / Case：8-DIP Module
- Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for ERM02H110
