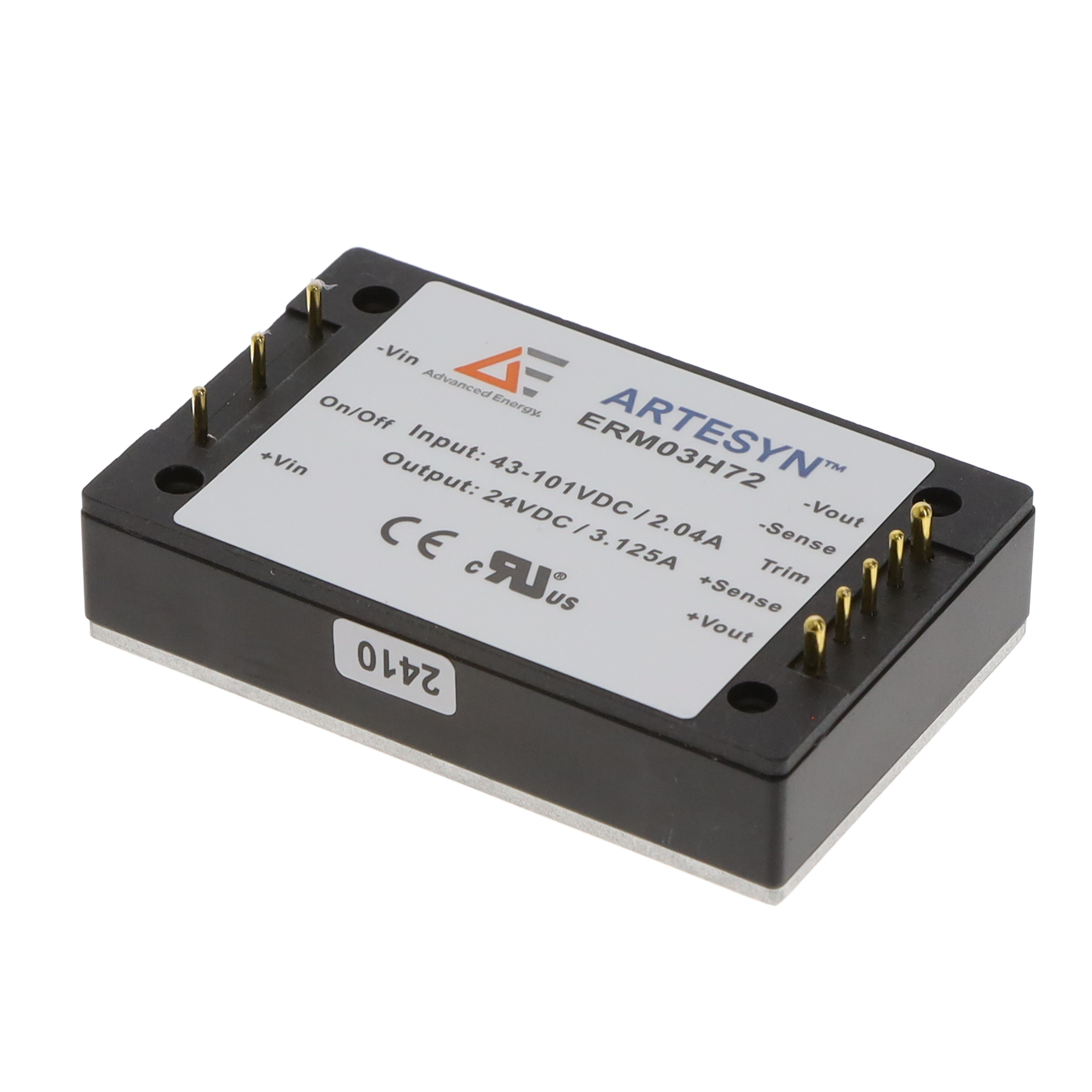

ERM03H72

ERM03H72 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 24V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ERM03H72

• Description：DC DC CONVERTER 24V 75W
• Series：ERM75 (75W)
• Mfr：ARTESYN / Advanced Energy
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：101V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.125A
• Power (Watts)：75 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, SCP, UVLO
• Operating Temperature：-40°C ~ 70°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ERM03H72
