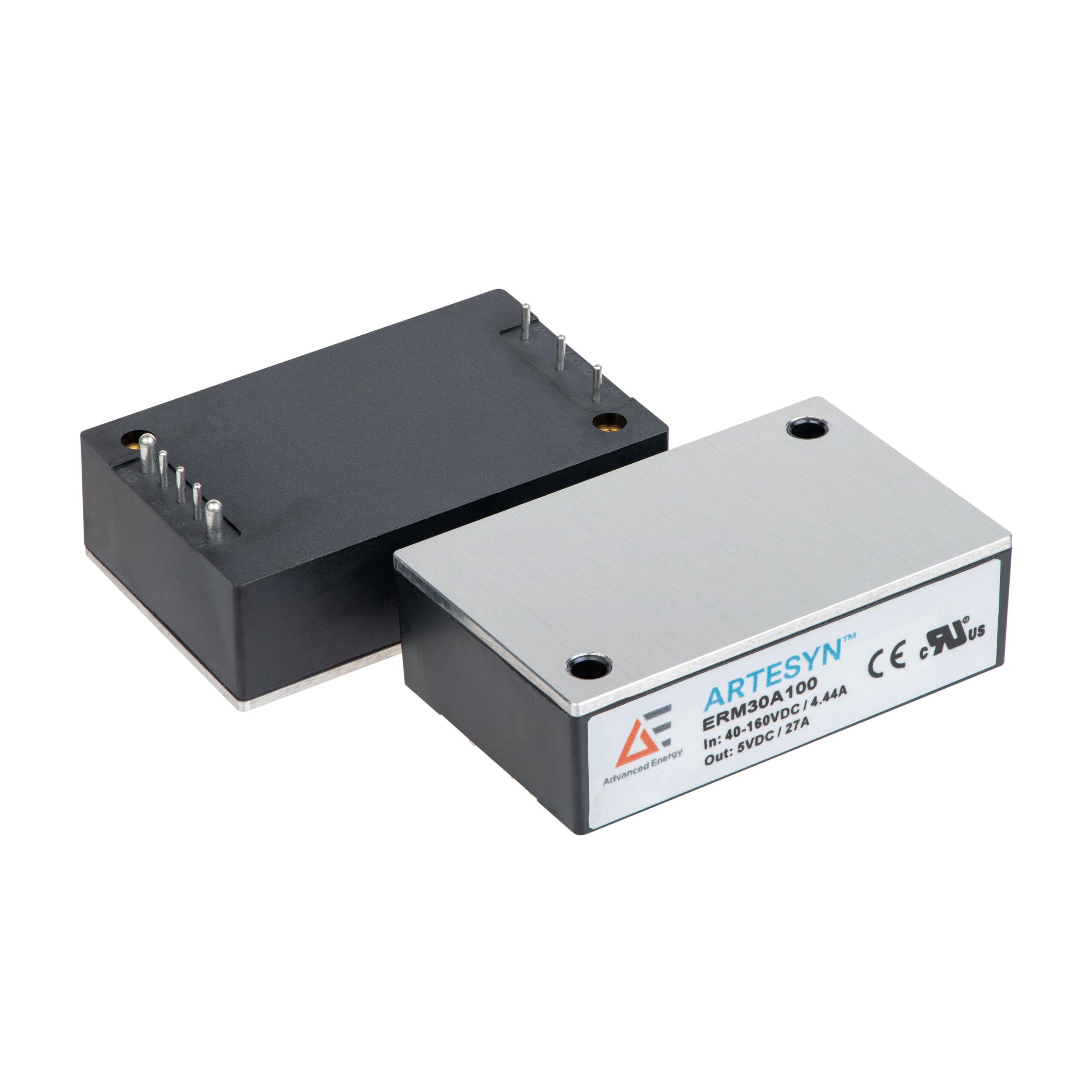

ERM30A100N-HS

ERM30A100N-HS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 150W 1/4 BRICK, NEG-ENABLE, 36-1. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ERM30A100N-HS

• Description：150W 1/4 BRICK, NEG-ENABLE, 36-1
• Series：ERM150 (150W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：160V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：27A
• Power (Watts)：150 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module
• Size / Dimension：2.30" L x 1.47" W x 0.67" H (58.4mm x 37.3mm x 17.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE, UKCA
• Standard Number：50155; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ERM30A100N-HS
