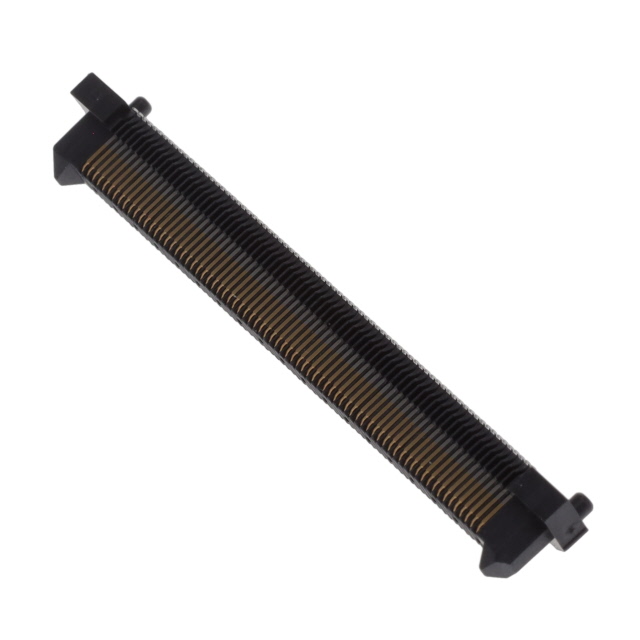

Arrays, Edge Type, Mezzanine (Board To Board) ERM5-075-02.0-L-DV-WT-TR product image

ERM5-075-02.0-L-DV-WT-TR

$4.91

Description：CONN HDR 150POS SMD GOLD
Series：Edge Rate™ ERM5
Mfr：Samtec Inc.
Package：Tape & Reel (TR)

SKU:7fe4001fab63 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ERM5-075-02.0-L-DV-WT-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR 150POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for ERM5-075-02.0-L-DV-WT-TR

Description：CONN HDR 150POS SMD GOLD
Series：Edge Rate™ ERM5
Mfr：Samtec Inc.
Package：Tape & Reel (TR)
Connector Type：Header, Outer Shroud Contacts
Number of Positions：150
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Mated Stacking Heights：7mm, 9mm
Height Above Board：0.191" (4.85mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for ERM5-075-02.0-L-DV-WT-TR

ERM5-075-02.0-L-DV-WT-TR
