ES1-F10

Power Line Filter Modules Overview

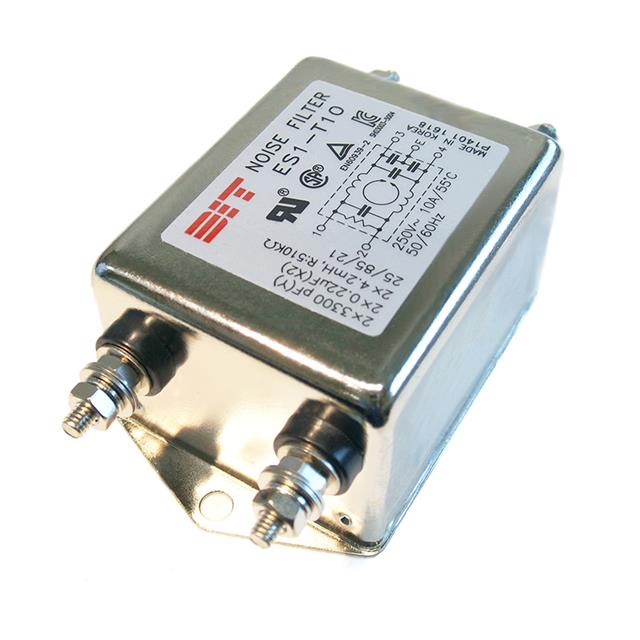

The DIT ES1-F10 is a single-phase EMC/EMI line filter module designed for chassis mounting. It supports a rated AC and DC voltage of 250V with a continuous current capacity of 10A at operating frequencies between 50Hz and 60Hz. The unit features a single-stage configuration and utilizes quick-connect terminals for electrical interface. Certified by CSA, TUV, and UR, it operates within a temperature range of -25°C to +85°C.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering architecture
• Chassis mount installation type
• Quick connect terminal style

Power Line Filter Modules Applications

• General industrial equipment power input
• Electronic device noise suppression
• Power supply line conditioning

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official DIT documentation to confirm exact terminal configuration and certification status. Ensure the selected variant matches the required voltage and current ratings for the target application circuit. Cross-reference datasheet specifications for mechanical dimensions and mounting hole patterns prior to integration.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase noise attenuation in compact chassis-mounted designs. Confirm that the 10A current rating and 250V voltage limits exceed the system's maximum operational requirements. Verify compatibility with quick-connect termination methods and ensure adequate thermal management within the specified -25°C to +85°C operating range.

Power Line Filter Modules Part Context

This component belongs to the ES1 series of power line filter modules manufactured by DIT. The series offers various current ratings including 5A, 8A, 10A, 15A, and 20A options. These filters are engineered for general-purpose electromagnetic interference suppression in AC and DC power lines.

Power Line Filter Modules Replacement Considerations

Consult official DIT documentation for verified substitute part numbers within the ES1 series or equivalent certified alternatives. Ensure any replacement maintains identical voltage, current, and mounting specifications.
