ESD-FPD-16-1

$5.74

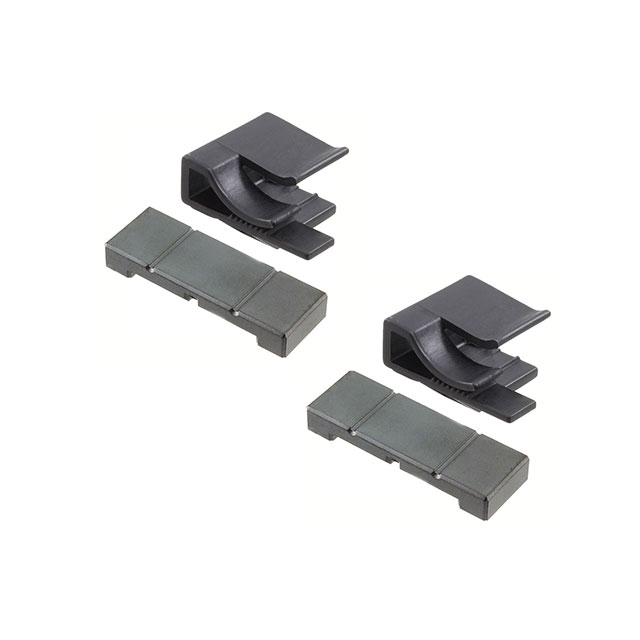

Description：FERRITE CORE CLIP 25.4 X 2.6MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Bulk

SKU:b98d21dbd777 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE CLIP 25.4 X 2.6MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Bulk
Type：Flat
Design：Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency：-
Material：-
Inner Dimension：0.999" W x 0.102" H (25.40mm x 2.60mm)
Outer Dimension：1.456" W x 0.393" H (37.00mm x 10.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.500" (12.70mm)

Download product information

ESD-FPD-16-1

Overview

The KEMET ESD-FPD-16-1 is a split-core ferrite clamp designed for flat cable applications. It features an internal dimension of 25.4 mm by 2.6 mm and external dimensions of 37 mm by 12.7 mm by 10 mm. The component is constructed from nickel-zinc (Ni-Zn) ferrite material, suitable for high-frequency noise suppression. It supports up to 16 wires within the cable assembly. The unit operates at a maximum temperature of +85°C and is compliant with RoHS standards.

Feature Summary

Split-core design allows installation on existing cables without disconnection
Optimized geometry for flat cable bundles
Nickel-zinc material composition for effective high-frequency attenuation

Applications

Consumer electronics
Industrial equipment
Embedded electronics systems

Procurement Notes

Verify the specific suffix designation against official KEMET documentation to ensure correct dimensional and material specifications. Confirm RoHS compliance status through current manufacturer declarations. Ensure the selected variant matches the required flat cable internal dimensions for proper fitment.

Selection Notes

Select this component when retrofitting EMI suppression onto pre-assembled flat ribbon cables. The split-core architecture facilitates maintenance and modification of existing wiring harnesses. Verify that the operating environment remains within the specified thermal limits for reliable performance.

Part Context

This part belongs to the ESD series of ferrite cores manufactured by KEMET Electronics Corporation. The series provides passive electromagnetic interference suppression solutions for various electronic interconnects. These components are categorized under passive elements and specifically target common-mode noise reduction in signal and power lines.

Replacement Considerations

Cross-reference with other Ni-Zn split-core ferrites offering identical 25.4 x 2.6 mm internal apertures. Ensure substitute parts maintain compatible frequency response characteristics for the target application bandwidth.
