ESD-FPD-34-1

$7.13

Description：FERRITE CORE CLIP 48.3 X 2MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Tray

SKU:d7b4f03ec727 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE CLIP 48.3 X 2MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Tray
Type：Flat
Design：Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.902" W x 0.079" H (48.30mm x 2.00mm)
Outer Dimension：2.362" W x 0.394" H (60.00mm x 10.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.500" (12.70mm)

Download product information

ESD-FPD-34-1

Overview

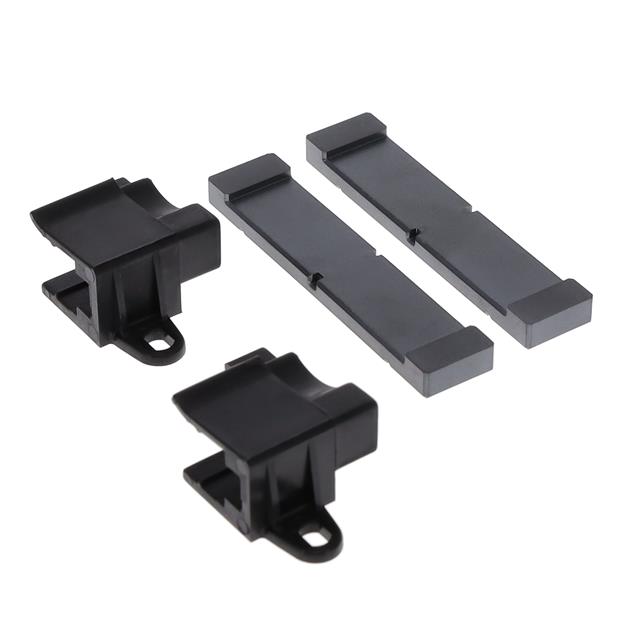

The KEMET ESD-FPD-34-1 is a split-core ferrite cable core designed for flat cables. It utilizes Ni-Zn material and features dimensions of 48.3 mm in length and 2 mm in width. The component supports a maximum of 34 wires within its aperture.

Feature Summary

Split core design enables installation on existing cable assemblies without disconnection
Ni-Zn composition provides effective high-frequency noise suppression
Specific geometry accommodates flat cable profiles

Applications

Flat cable EMI suppression
High-frequency noise filtering in electronic circuits
Automotive wiring harness protection

Procurement Notes

Verify the specific suffix against official KEMET documentation to confirm exact dimensional tolerances and material specifications. Ensure compatibility with target flat cable thickness before procurement, as split-core designs require precise aperture matching for optimal magnetic coupling and mechanical retention.

Selection Notes

Select this component when retrofitting noise suppression onto pre-assembled flat cables. The split architecture eliminates the need to thread cables through solid cores. Confirm that the operating frequency range aligns with the Ni-Zn material characteristics for effective attenuation.

Part Context

This part belongs to the KEMET ESD series of ferrite cable cores. These components are engineered for electromagnetic interference suppression in sensitive electronic environments. The series offers various geometries to suit different cable types and installation constraints.

Replacement Considerations

Consult KEMET technical resources for verified substitute part numbers. Cross-referencing requires matching split-core geometry, Ni-Zn material properties, and dimensional constraints to ensure equivalent performance.
