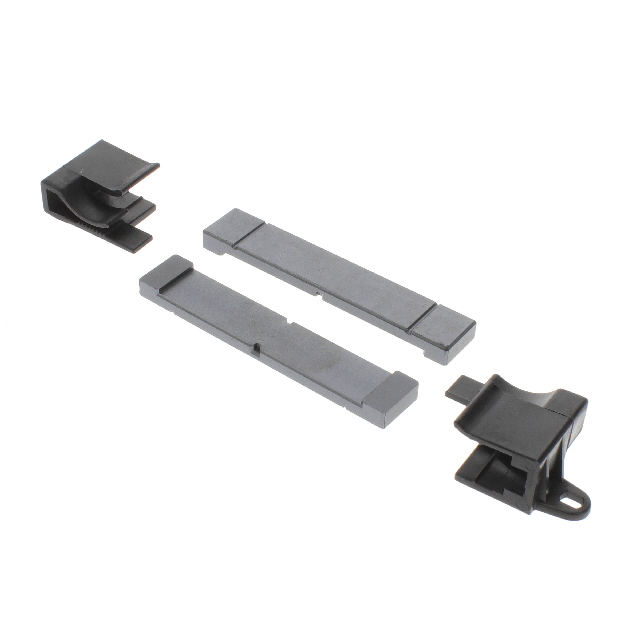

ESD-FPD-40-1

$7.94

Description：FERRITE CORE CLIP 56 X 2MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Tray

SKU:83a92fe8a1a8 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE CLIP 56 X 2MM
Series：ESD-FPD-1
Mfr：KEMET
Package：Tray
Type：Flat
Design：Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：2.205" W x 0.079" H (56.00mm x 2.00mm)
Outer Dimension：2.677" W x 0.394" H (68.00mm x 10.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.500" (12.70mm)

Download product information

ESD-FPD-40-1

Overview

The KEMET ESD-FPD-40-1 is a split-core ferrite cable core designed for electromagnetic interference (EMI) suppression. It utilizes Ni-Zn material and features dimensions of 56 mm by 2 mm. The component operates within a temperature range of -40°C to +125°C and meets UL94 V-0 flammability standards.

Feature Summary

Split-core design enables installation around existing cables without disconnection
Ni-Zn ferrite material provides effective high-frequency noise attenuation
UL94 V-0 rated casing ensures flame retardant safety compliance

Applications

Suppression of electromagnetic interference in flat ribbon cables
Noise reduction on data and signal transmission lines
Compliance enhancement for electronic equipment emitting high-frequency noise

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm material composition and dimensional tolerances. Ensure the selected component matches the required operating temperature range and flammability rating for the intended application environment.

Selection Notes

Select this component when retrofitting EMI suppression onto existing cable assemblies is required. The split-core architecture allows for post-assembly installation, making it suitable for applications where cable termination cannot be disturbed during the filtering process.

Part Context

This component belongs to the KEMET ESD series of ferrite cable cores. These products are engineered for EMI suppression in various electronic environments, offering a practical solution for managing conducted emissions on flexible and flat cabling systems.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic ferrite cores may not match the specific Ni-Zn material properties or dimensional constraints required for proper fit and performance.
