ESD-FPD-50-1

Overview

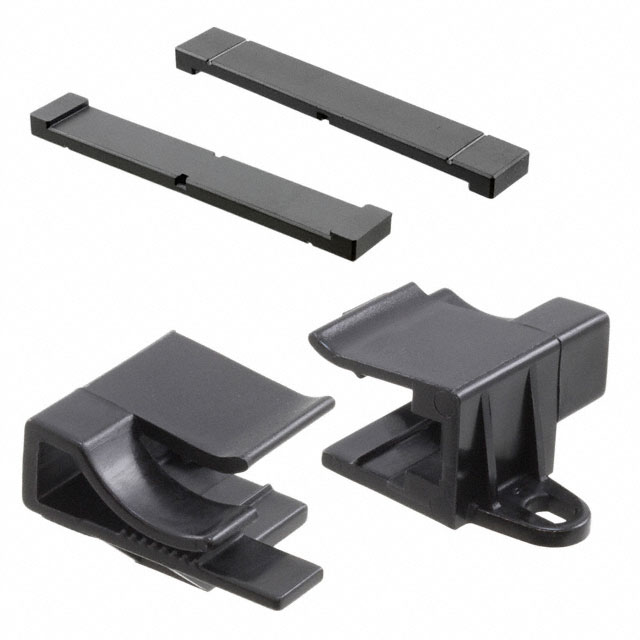

The KEMET ESD-FPD-50-1 is a split-core ferrite component designed for flat cables, accommodating up to 50 wires. It features an openable design with inner dimensions of 68.6mm by 2mm and outer dimensions of 80mm x 12.7mm x 10mm. Constructed from ferrite material, it provides electromagnetic interference suppression for high-frequency applications.

Feature Summary

• Split core construction allows installation on existing flat cables without disconnection
• Designed specifically for high-frequency electromagnetic interference suppression
• Accommodates flat cables with up to 50 conductors

Applications

• High-frequency signal cable protection
• Electromagnetic interference suppression in electronic assemblies
• Flat cable harness management

Procurement Notes

Verify the specific impedance value at 100MHz against official datasheets, as conflicting data exists between similar series models (e.g., ESD-FPL vs ESD-FPD). Confirm that the split-core plastic clamp mechanism matches the required cable thickness and width constraints before procurement.

Selection Notes

Select this model when retrofitting or servicing existing flat cable assemblies where opening the magnetic path is necessary. Ensure the internal width of 2mm accommodates the target cable stack-up. Compare against solid core variants if new assembly manufacturing is the primary use case.

Part Context

This component belongs to the KEMET ESD-FPD-1 Series, which consists of split cores equipped with plastic clamps for flat cables. The series is engineered for high-frequency environments, offering a practical solution for managing electromagnetic compatibility in complex wiring systems.

Replacement Considerations

ESD-FPD-30-1: Accommodates up to 30 wires with smaller dimensions. ESD-FPD-100-1: Accommodates up to 100 wires with larger dimensions. Verify dimensional fit and wire capacity requirements when substituting.
