ESD-FPL-13

Overview

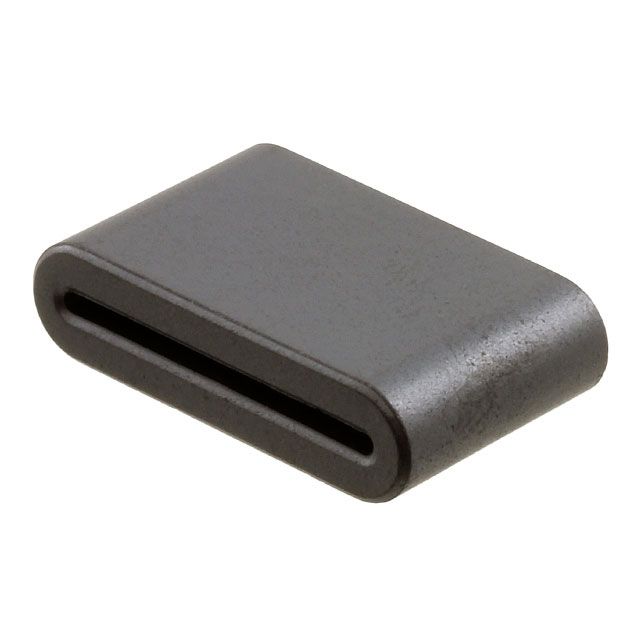

The KEMET ESD-FPL-13 is a solid ferrite core designed for flat ribbon cables. It features Nickel Zinc material with a maximum operating temperature of +85°C and operates up to 300 MHz. The component has an internal length of 13 mm, external length of 23.8 mm, external width of 18.8 mm, and external height of 6.30 mm. The internal gap dimensions are 15.0 mm by 1.10 mm.

Feature Summary

• Solid construction designed specifically for flat ribbon cables
• Thin minimal gap type configuration
• Nickel Zinc core material composition

Applications

• Flat cable electromagnetic interference suppression
• Consumer electronics signal integrity protection

Procurement Notes

Verify current availability status as the manufacturer has scheduled this part for obsolescence. Confirm specific datasheet revisions and final lifecycle dates before integration into new designs to ensure long-term supply chain stability.

Selection Notes

Select based on required internal gap dimensions to accommodate specific flat cable thicknesses. Ensure the Nickel Zinc material properties align with the target frequency range and thermal environment requirements of the application.

Part Context

This component belongs to the KEMET ESD-FPL series of solid ferrite cores intended for flat cables. These cores utilize thin minimal gap types to provide effective noise suppression while maintaining compatibility with standard flat ribbon cable geometries in electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available. Due to the scheduled obsolescence status, alternative components must be sourced through independent engineering validation rather than direct cross-referencing.
