ESD-FPL-14.5-3

Overview

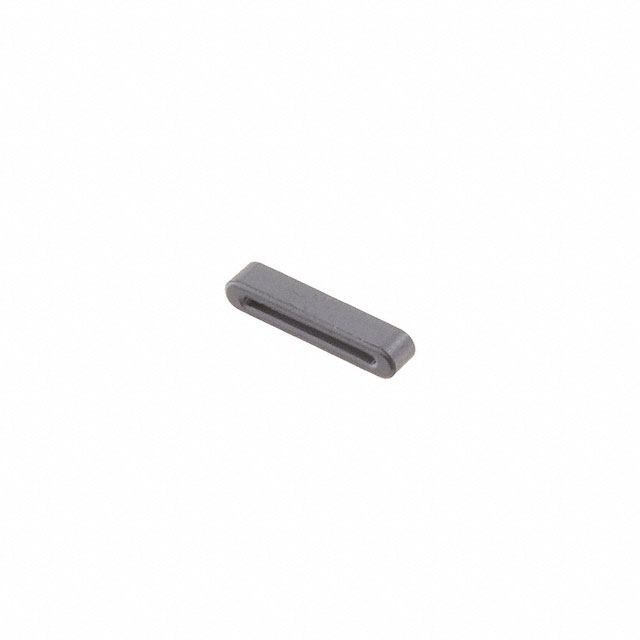

The KEMET ESD-FPL-14.5-3 is a solid nickel-zinc ferrite cable core designed for flat ribbon cables. It features an external length of 14.5 mm, external width of 5 mm, and external height of 2.75 mm. The internal dimensions are 11 mm in length and 0.8 mm in height. The component operates within a temperature range up to +85°C and supports frequencies up to 300 MHz.

Feature Summary

• Solid nickel-zinc ferrite construction for flat ribbon cables
• Designed for electromagnetic interference suppression
• RoHS compliant manufacturing standard

Applications

• Flat ribbon cable shielding
• Electromagnetic interference suppression in electronic assemblies

Procurement Notes

Verify the specific part number against manufacturer documentation to confirm current availability status. Note that some distributors may list this item as obsolete or end-of-life; ensure the source explicitly confirms active production or valid stock before procurement decisions.

Selection Notes

Select this component when shielding flat ribbon cables with specific dimensional constraints requiring a 14.5 mm length and 5 mm width. Ensure the application environment remains within the specified operating temperature limits and frequency requirements for effective noise suppression.

Part Context

This component belongs to the KEMET ESD-FPL series of ferrite cable cores. These parts are engineered specifically for suppressing electromagnetic interference on flat cabling solutions. The series utilizes nickel-zinc ferrite materials to provide high-frequency attenuation characteristics suitable for consumer and industrial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
