ESD-FPL-14.5-8

Overview

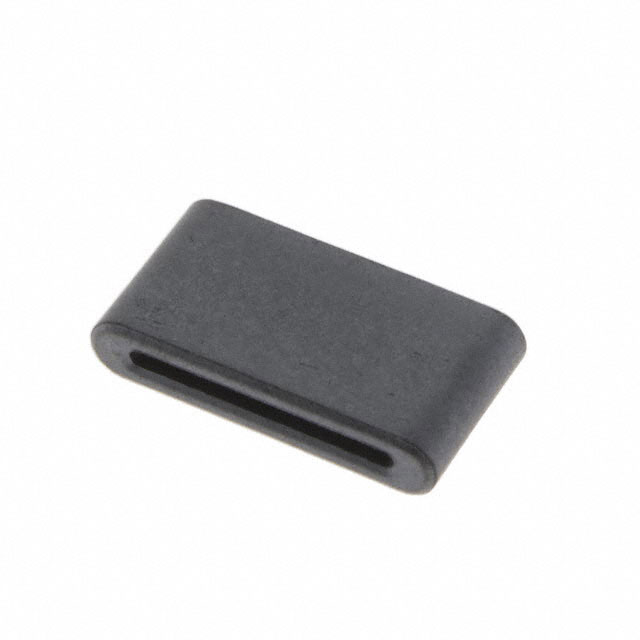

The KEMET ESD-FPL-14.5-8 is a solid nickel-zinc ferrite cable core designed for flat ribbon cables. It features an internal length of 11 mm, an external length of 14.5 mm, and an external width of 8 mm. The component operates up to a maximum frequency of 300 MHz with a maximum operating temperature of +85°C.

Feature Summary

• Constructed from nickel-zinc ferrite material for high-frequency noise suppression
• Solid core design specifically engineered for flat ribbon cables
• Compact dimensions suitable for space-constrained electronic assemblies

Applications

• Flat ribbon cable noise filtering
• Electromagnetic interference suppression in consumer electronics
• Signal integrity enhancement in data transmission lines

Procurement Notes

Verify the specific nickel-zinc composition and dimensional tolerances against the official KEMET datasheet before integration. Confirm that the 300 MHz frequency limit and +85°C thermal rating align with the target application environment requirements.

Selection Notes

Select this component when shielding flat ribbon cables within tight spatial limits. Ensure the cable thickness fits the internal aperture. Verify compatibility with the intended signal frequencies below the 300 MHz operational ceiling.

Part Context

This part belongs to the KEMET ESD-FPL series of solid ferrite cores. These components are manufactured to provide reliable electromagnetic interference mitigation for modern electronic interconnects requiring compact form factors.

Replacement Considerations

Check for direct substitutes within the ESD-FPL series that match the 11mm internal length and 8mm external width. Ensure any alternative maintains the nickel-zinc material properties for equivalent high-frequency performance.
