ESD-FPL-15

Overview

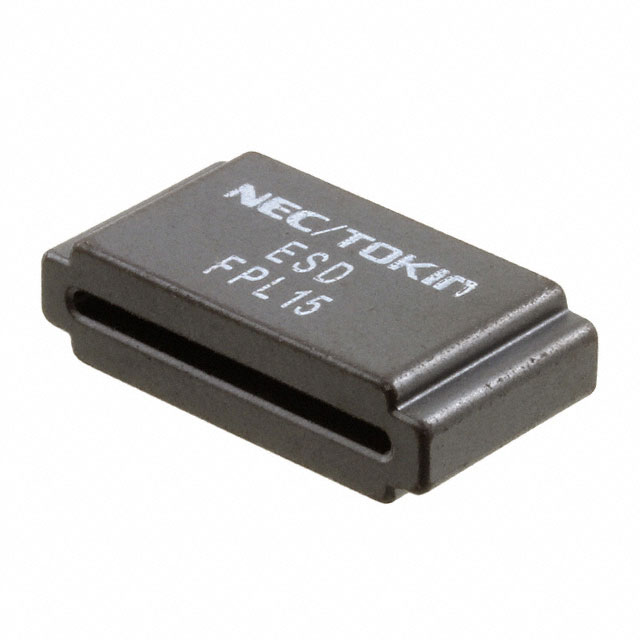

The KEMET ESD-FPL-15 is a solid flat cable ferrite core designed for electromagnetic interference suppression. Constructed from nickel-zinc material, it supports up to 20 wires within a maximum operating temperature of +85°C and a minimum of -25°C. The component features an internal width of 1.5mm and an external depth of 14.6mm. It provides an impedance of 100Ω at 100MHz with a maximum frequency rating of 300MHz. Compliance includes RoHS standards.

Feature Summary

• Solid construction for secure flat cable retention
• Nickel-zinc composition for high-frequency noise attenuation
• Designed specifically for flat ribbon cable applications

Applications

• Consumer electronics signal line filtering
• Flat cable EMI suppression
• High-frequency data line protection

Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with design requirements. Confirm material specifications and impedance characteristics match the intended application environment. Check for current availability status as components may be subject to lifecycle changes or discontinuation notices.

Selection Notes

Select this component based on the required internal width of 1.5mm to accommodate specific flat cable thicknesses. Ensure the target frequency range aligns with the 300MHz maximum rating. Verify that the nickel-zinc material properties suit the operational temperature range between -25°C and +85°C for the specific deployment scenario.

Part Context

This component belongs to the ESD-FPL series of solid ferrite cores manufactured by KEMET. These cores are engineered for suppressing electromagnetic interference in flat cable assemblies. The series utilizes nickel-zinc ferrite materials to provide effective noise reduction across high-frequency ranges commonly found in modern electronic interconnects.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
