ESD-FPL-16-12

$4.51

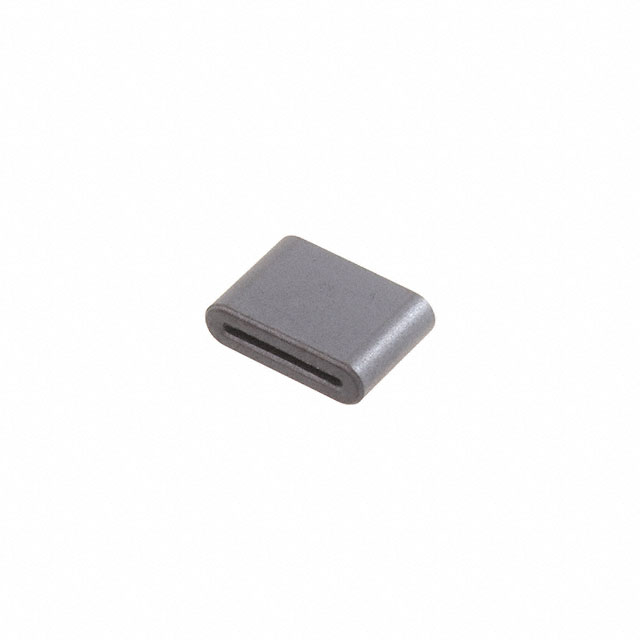

Description：FERRITE CORE SOLID 11.5 X 0.85MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:7cbfaca59e51 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 11.5 X 0.85MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.453" W x 0.033" H (11.50mm x 0.85mm)
Outer Dimension：0.630" W x 0.177" H (16.00mm x 4.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-FPL-16-12

Overview

The KEMET ESD-FPL-16-12 is a solid core ferrite cable core designed for flat ribbon cables. It utilizes Nickel-Zinc (Ni-Zn) material to provide electromagnetic interference suppression. The component features an internal length of 11.5 mm and an internal height of 0.85 mm, accommodating specific flat cable dimensions. It operates effectively up to a maximum frequency of 300 MHz and supports a maximum operating temperature of +85°C. The device is RoHS compliant.

Feature Summary

Solid core construction specifically engineered for flat ribbon cables
Utilizes Nickel-Zinc (Ni-Zn) ferrite material for high-frequency noise suppression
Designed for effective operation at frequencies up to 300 MHz

Applications

Electromagnetic interference suppression in consumer electronics
Signal integrity protection for flat ribbon cable assemblies
Noise filtering in compact electronic devices

Procurement Notes

Verify the exact physical dimensions against your flat cable specifications before procurement. Confirm that the Nickel-Zn material properties align with your required frequency range. Ensure the component meets all necessary environmental compliance standards for your target market. Check for any specific handling requirements during assembly.

Selection Notes

Select this component when shielding flat ribbon cables within tight spatial constraints. The Ni-Zn composition offers suitable performance for general-purpose EMI reduction. Consider the internal height limitation to ensure proper cable fit. Evaluate the thermal characteristics if the application involves elevated ambient temperatures.

Part Context

This part belongs to the ESD-FPL series of flat cable cores from KEMET. These components are distinct from standard round ferrite beads as they are shaped to slide over flat conductors. The series provides various sizes to accommodate different cable widths and thicknesses, ensuring targeted EMI control in dense PCB layouts.

Replacement Considerations

Direct substitutes must match the 11.5 mm internal length and 0.85 mm internal height. Verify that alternative materials also utilize Nickel-Zn chemistry for comparable high-frequency impedance characteristics. Ensure the replacement maintains the same RoHS compliance status.
