ESD-FPL-18-12

Overview

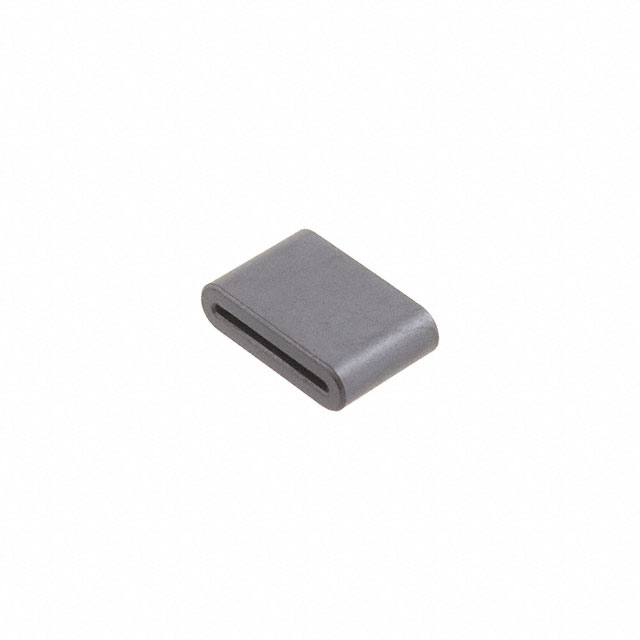

The KEMET ESD-FPL-18-12 is a solid nickel-zinc ferrite core designed for flat ribbon cables. It features an internal length of 14 mm, external length of 18 mm, external width of 12 mm, and external height of 5 mm. The component supports a maximum operating frequency of 300 MHz and operates within a temperature range up to +85°C. It complies with RoHS standards.

Feature Summary

• Solid nickel-zinc ferrite construction for flat cable applications
• Designed for electromagnetic interference suppression in electronic circuits

Applications

• Electromagnetic interference suppression in consumer electronics
• Signal integrity management in flat ribbon cable assemblies

Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy. Confirm that the component meets required environmental standards such as RoHS compliance for your target market. Check current lifecycle status, as sources indicate this item may be obsolete or subject to discontinuation by the manufacturer.

Selection Notes

Select this component when a solid-core ferrite solution is required for flat ribbon cables rather than split cores. Ensure the physical dimensions (18mm x 12mm x 5mm) fit the available space in the design. Verify that the nickel-zinc material properties align with the intended frequency range and impedance requirements of the application.

Part Context

This component belongs to the ESD-FPL series of flat ribbon cable cores manufactured by KEMET. These cores are engineered to provide common-mode noise suppression for data and power lines within flat cable harnesses, helping to maintain signal integrity in compact electronic assemblies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official KEMET resources for potential cross-references.
