ESD-FPL-18.7-12

Overview

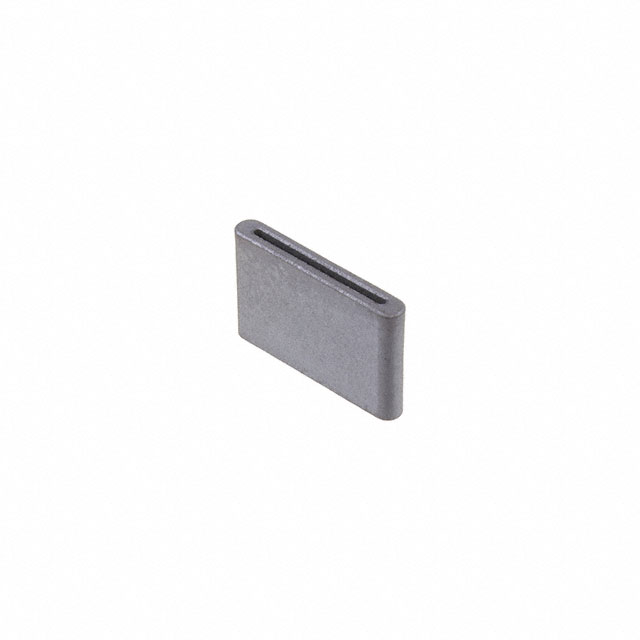

The KEMET ESD-FPL-18.7-12 is a solid core ferrite cable core designed for flat ribbon cables. It features a nickel-zinc (Ni-Zn) material composition and operates up to a maximum frequency of 300 MHz. The component has an internal length of 15 mm, an external length of 18.7 mm, an external width of 12 mm, an internal height of 0.7 mm, and an external height of 5 mm. It supports a bare Ni-Zn finish and complies with RoHS standards.

Feature Summary

• Solid core construction for flat ribbon cables
• Nickel-zinc material for high-frequency operation
• Bare surface finish

Applications

• Flat ribbon cable suppression

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current production status and availability. Ensure that the physical dimensions and material specifications match the design requirements. Check for any end-of-life notices or obsolescence warnings associated with this component before finalizing procurement plans.

Selection Notes

Select this component when shielding flat ribbon cables in applications requiring operation up to 300 MHz. The solid core design provides a secure fit for cables with specific cross-sectional dimensions. Verify that the internal height accommodates the target cable thickness and that the nickel-zinc material properties align with the required impedance characteristics.

Part Context

This component belongs to the ESD-FPL series of ferrite cable cores manufactured by KEMET. These components are engineered for electromagnetic interference suppression in electronic assemblies. The series offers various sizes to accommodate different cable geometries while maintaining compliance with environmental regulations such as RoHS.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
