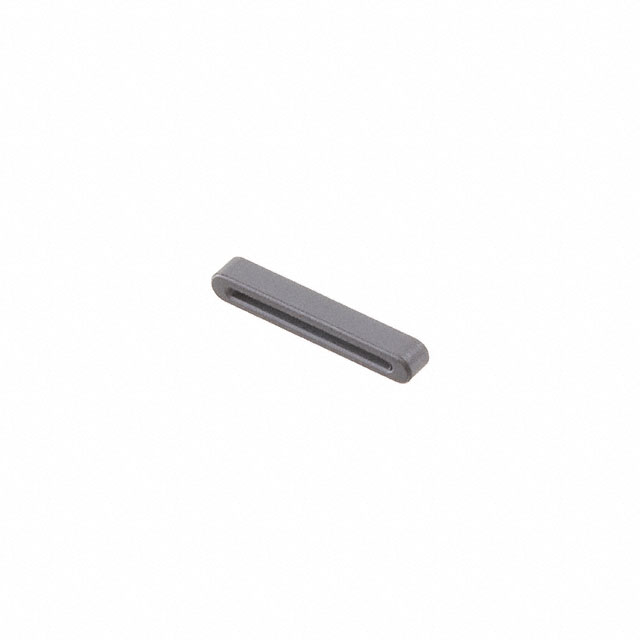

ESD-FPL-18.7-3

$0.47

Description：FERRITE CORE SOLID 15 X 0.7MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:7b6f4160005e Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 15 X 0.7MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.591" W x 0.028" H (15.00mm x 0.70mm)
Outer Dimension：0.736" W x 0.108" H (18.70mm x 2.75mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.118" (3.00mm)

Download product information

ESD-FPL-18.7-3

Overview

The KEMET ESD-FPL-18.7-3 is a solid ferrite cable core designed for flat ribbon cables. It features an external length of 18.7mm, width of 15mm, and height of 2.75mm, with an internal height of 3mm. The component operates within a temperature range of -25°C to +85°C and supports frequencies up to 300MHz.

Feature Summary

Solid ferrite construction optimized for flat ribbon cables
Designed for high-frequency electromagnetic interference suppression

Applications

Flat ribbon cable filtering in consumer electronics

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your design requirements. Confirm that the physical dimensions and material specifications align with your assembly constraints before finalizing procurement decisions.

Selection Notes

Select this component when shielding flat ribbon cables in applications requiring operation between -25°C and +85°C. Ensure the internal cavity dimensions accommodate the target cable thickness effectively for optimal magnetic coupling and performance.

Part Context

This component belongs to the KEMET ESD-FPL series of solid ferrite cores. These are engineered specifically for suppressing electromagnetic interference on flat ribbon cables used in various electronic assemblies.
