ESD-FPL-18-8

Overview

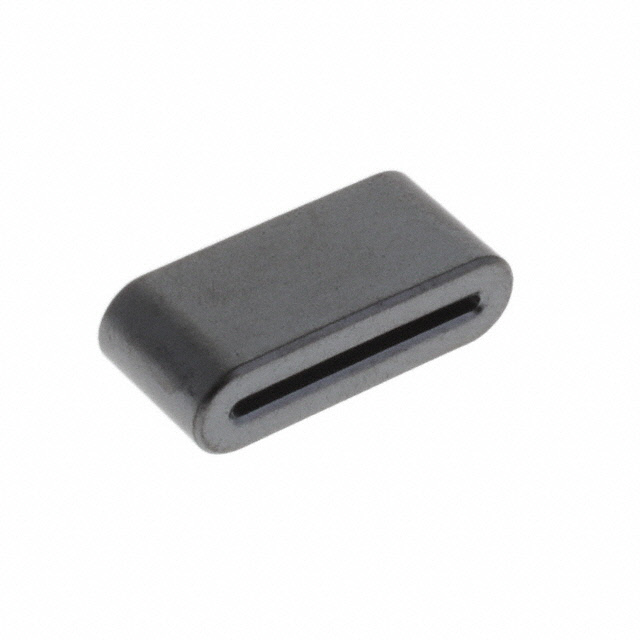

The KEMET ESD-FPL-18-8 is a solid ferrite cable core designed for flat ribbon cables. It features Nickel-Zinc (Ni-Zn) material construction with an internal cross-section of 14mm by 1mm. The component has external dimensions of 18mm in length, 8mm in width, and 5mm in height. It operates within a temperature range up to +85°C and supports frequencies up to 300MHz.

Feature Summary

• Solid core design specifically engineered for flat ribbon cables
• Constructed from Nickel-Zinc ferrite material
• Free hanging mounting type

Applications

• Flat ribbon cable suppression
• Electromagnetic interference filtering

Procurement Notes

Verify the specific part number against manufacturer documentation to confirm current production status. Ensure that the internal dimensions match the target flat cable specifications before integration. Check for any RoHS compliance requirements relevant to the final assembly environment.

Selection Notes

Select this component when dealing with flat ribbon cables requiring EMI suppression. Confirm that the 14x1mm internal aperture accommodates the cable thickness and width. Verify that the Ni-Zn material properties align with the required frequency range and operating temperature limits of the application.

Part Context

This component belongs to the ESD-FPL series of ferrite cable cores manufactured by KEMET. These cores are typically used to suppress electromagnetic interference on data and power lines within electronic assemblies. The series offers various sizes to accommodate different cable geometries.

FAQ

What is the internal dimension of the ESD-FPL-18-8?

The internal dimensions are 14mm in length and 1mm in height.

What material is used for the core?

The core is made of Nickel-Zinc (Ni-Zn) ferrite material.
