ESD-FPL-20-12

Overview

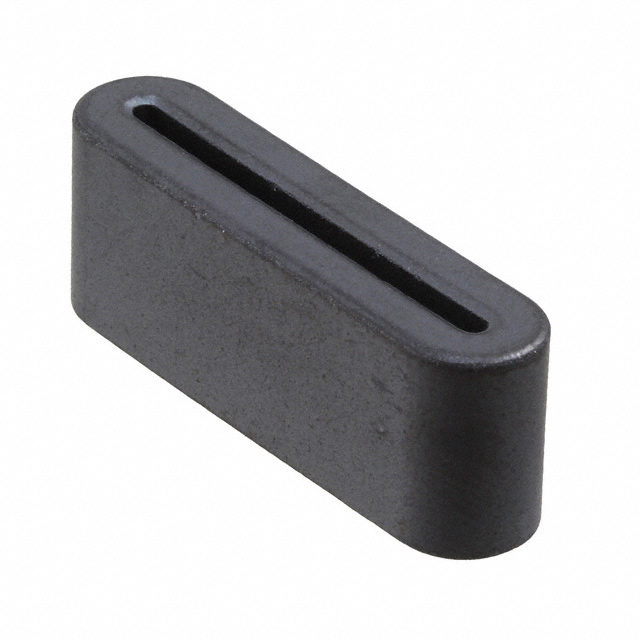

The KEMET ESD-FPL-20-12 is a solid core flat ribbon cable ferrite bead designed for electromagnetic interference suppression. It features a nickel-zinc core material and supports up to 20 wires within its internal width of 1.5 mm. The component measures 33.2 mm in external length, 8 mm in external width, and 8 mm in external height. It provides an impedance of 60 Ω at 100 MHz and operates effectively up to a maximum frequency of 300 MHz. The unit is RoHS compliant and suitable for consumer electronics applications.

Feature Summary

• Solid core construction for secure wire retention
• Nickel-zinc material composition for high-frequency performance
• Flat ribbon design accommodating multiple conductors

Applications

• Consumer electronics signal line filtering
• Flat ribbon cable noise suppression
• Multi-wire harness EMI mitigation

Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy. Confirm that the requested item matches the solid core flat ribbon specification and nickel-zinc material composition. Check for current availability status as some listings indicate end-of-life or obsolescence warnings. Ensure compliance with RoHS standards if required by your project specifications before finalizing procurement.

Selection Notes

Select this component when managing multi-conductor flat cables requiring compact EMI suppression. The 1.5 mm internal width accommodates up to 20 wires, making it ideal for dense ribbon configurations. Choose based on the required 60 Ω impedance at 100 MHz and the 300 MHz operational limit. Ensure the physical dimensions fit within the available space constraints of the target electronic assembly.

Part Context

This component belongs to the ESD-FPL series of flat ribbon cable cores manufactured by KEMET. These cores are specifically engineered for suppressing electromagnetic interference in flat cable assemblies used in various electronic devices. The series utilizes nickel-zinc ferrite materials to provide effective noise attenuation across high-frequency ranges while maintaining a low-profile form factor suitable for tight spaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
