ESD-FPL-20-15

$2.54

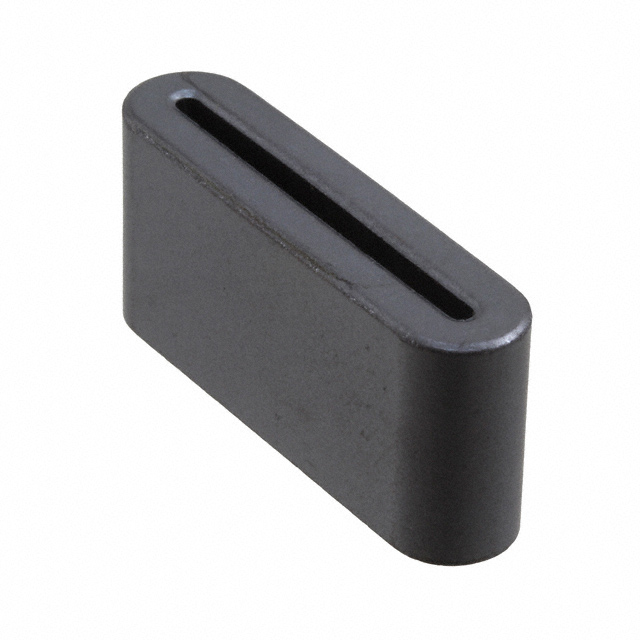

Description：FERRITE CORE SOLID 27 X 1.5MM
Series：ESD-FPL
Mfr：KEMET
Package：Bulk

SKU:2a5d7ebf2a8e Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 27 X 1.5MM
Series：ESD-FPL
Mfr：KEMET
Package：Bulk
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.063" W x 0.059" H (27.00mm x 1.50mm)
Outer Dimension：1.307" W x 0.314" H (33.20mm x 8.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.591" (15.00mm)

Download product information

ESD-FPL-20-15

Overview

The KEMET ESD-FPL-20-15 is a solid core ferrite cable core designed for flat ribbon cables. It features nickel-zinc material with an effective frequency of 300 MHz. The component has internal dimensions of 27 mm length by 1.5 mm height, and external dimensions of 33.2 mm length, 12 mm width, and 8 mm height. It operates within a temperature range of -25°C to +85°C and complies with RoHS standards.

Feature Summary

Solid core construction for flat ribbon cables
Nickel-zinc ferrite material composition
Effective frequency performance up to 300 MHz

Applications

EMI suppression in consumer electronics
Flat cable signal integrity protection
High-frequency noise filtering

Procurement Notes

Verify the specific part number against official KEMET documentation to ensure compatibility with your design requirements. Confirm that the solid core configuration matches your flat cable assembly needs. Check for any updated compliance certifications or environmental restrictions relevant to your region before finalizing procurement decisions.

Selection Notes

Select this component when dealing with flat ribbon cables requiring EMI suppression at frequencies up to 300 MHz. Ensure the internal dimensions accommodate the cable thickness. Consider the operating temperature range of -25°C to +85°C for your application environment. Verify mechanical fit within the enclosure space constraints.

Part Context

This component belongs to the KEMET ESD-FPL series of ferrite cable cores. These are specialized passive components used for electromagnetic interference suppression. The series offers various sizes to fit different flat cable configurations. They are commonly used in data transmission lines and power supplies within electronic devices.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided source data. Consult KEMET technical support for potential alternatives if this specific model is unavailable.
