ESD-FPL-21-8

$0.80

Description：FERRITE CORE SOLID 17 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Bulk

SKU:47daf7c47472 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 17 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Bulk
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.669" W x 0.031" H (17.00mm x 0.80mm)
Outer Dimension：0.827" W x 0.197" H (21.00mm x 5.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.315" (8.00mm)

Download product information

ESD-FPL-21-8

Overview

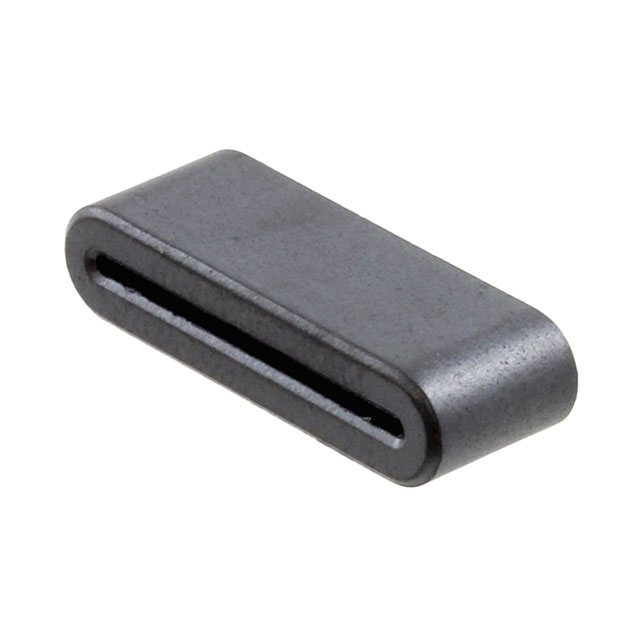

The KEMET ESD-FPL-21-8 is a solid core ferrite flat cable core designed for electromagnetic interference suppression. It features an inner dimension of 17mm by 0.8mm, accommodating flat cables up to 16 wires. The component utilizes nickel-zinc material and supports frequencies up to 500MHz. Its physical dimensions are 21mm in length and 8mm in height.

Feature Summary

Solid core construction for secure flat cable retention
Nickel-zinc material composition for high-frequency performance
Designed specifically for flat ribbon cable applications

Applications

Flat cable EMI suppression
Consumer electronics signal integrity
Data bus noise reduction

Procurement Notes

Verify the specific impedance value at 100MHz or other standard test frequencies against the official KEMET datasheet, as distributor listings may omit this critical parameter. Confirm that the 17mm internal width matches the target flat cable thickness precisely to ensure proper fit and magnetic coupling efficiency during installation.

Selection Notes

Select this component when a solid core solution is required for flat cables with a maximum thickness of 0.8mm. Ensure the application frequency range aligns with the nickel-zinc material characteristics. Verify that the 21mm external length provides sufficient space within the enclosure for the targeted EMI suppression requirements.

Part Context

This part belongs to the KEMET ESD-FPL series of flat cable ferrite cores. These components are engineered to suppress common-mode noise on flat ribbon cables used in digital interfaces. The series offers various internal dimensions to accommodate different cable gauges while maintaining consistent external form factors for standardized mounting.

Replacement Considerations

Check for direct substitutes within the ESD-FPL series that match the 17x0.8mm internal dimensions. Alternative manufacturers offering nickel-zinc flat cable cores with identical outer dimensions and compatible frequency response should be evaluated for mechanical interchangeability.
