ESD-FPL-31-12

Overview

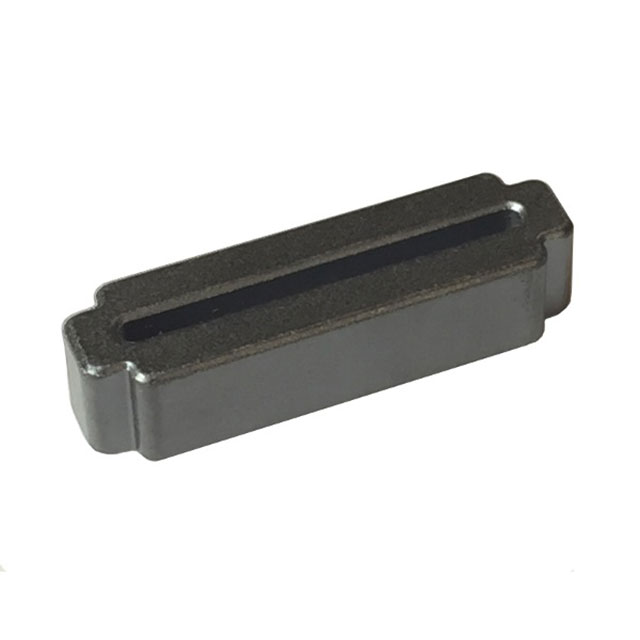

The KEMET ESD-FPL-31-12 is a solid core ferrite noise suppression component designed for flat ribbon cables. It belongs to the ESD-FPL series and features nickel-zinc material construction. The component has an external length of 31 mm, an external width of 12 mm, and an internal height of 1.5 mm. It supports up to 20 wires within its aperture. The device operates effectively at frequencies up to 300 MHz and is rated for a maximum operating temperature of +85°C. It complies with RoHS standards.

Feature Summary

• Solid core design for flat ribbon cable applications
• Nickel-zinc ferrite material for high-frequency noise suppression
• Supports up to 20 wires in the aperture

Applications

• Flat ribbon cable noise suppression
• Consumer electronics EMI filtering
• Signal integrity enhancement in data lines

Procurement Notes

Verify current availability status as this part may be subject to obsolescence or limited stock. Confirm RoHS compliance and specific dimensional tolerances against latest datasheets before integration. Check for alternative components if supply chain stability is a concern.

Selection Notes

Select based on required wire count capacity and frequency range. Ensure physical dimensions fit the target assembly space. Verify thermal rating compatibility with the operating environment. Consider lead time and lifecycle status due to potential end-of-life indications.

Part Context

This component is part of KEMET's ESD-FPL series of ferrite cores. These are specialized for suppressing electromagnetic interference in flat cable assemblies commonly found in consumer electronics and industrial control systems.

Replacement Considerations

Check for direct substitutes within the ESD-FPL series with matching impedance and dimensions. Verify cross-compatibility with other manufacturers' flat cable ferrites ensuring identical electrical characteristics and form factor.
