ESD-FPL-32-12

$1.11

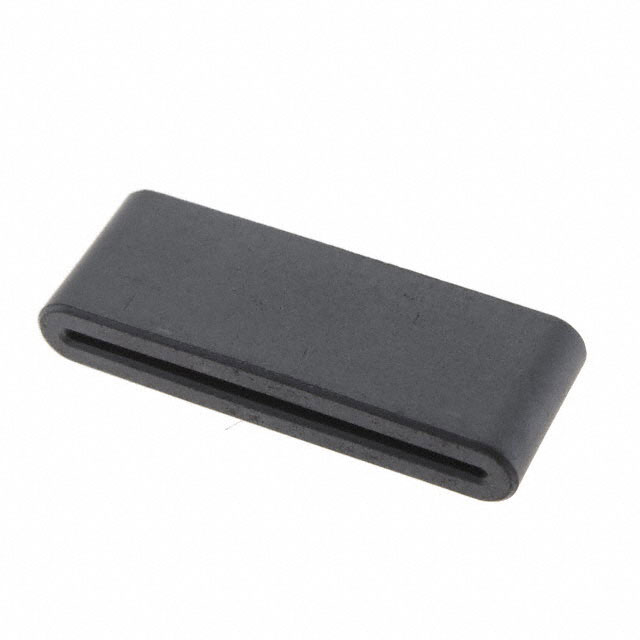

Description：FERRITE CORE SOLID 28 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:817749356a99 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 28 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.102" W x 0.031" H (28.00mm x 0.80mm)
Outer Dimension：1.260" W x 0.197" H (32.00mm x 5.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-FPL-32-12

Overview

The KEMET ESD-FPL-32-12 is a solid Ni-Zn ferrite core designed for flat ribbon cables. It features an internal width of 28mm and height of 0.8mm, with external dimensions of 32mm length, 33.2mm width, and 5mm height. The component operates up to 300MHz and supports up to 20 wires. It is RoHS compliant and intended for consumer electronics applications.

Feature Summary

Solid Ni-Zn construction for high-frequency noise suppression
Specifically engineered for flat ribbon cable integration
Bare finish suitable for custom mounting solutions

Applications

Consumer electronics signal line filtering
Flat cable EMI suppression in data interfaces
High-frequency noise reduction in compact assemblies

Procurement Notes

Verify the exact part number against official KEMET documentation to ensure compatibility with specific flat cable widths. Confirm RoHS compliance status and packaging details directly with authorized distributors. Check for any recent lifecycle updates or alternative recommendations from the manufacturer before finalizing procurement orders.

Selection Notes

Select this component when dealing with flat cables requiring a 28mm internal width. Ensure the operating frequency requirements align with the Ni-Zn material characteristics up to 300MHz. Verify that the physical dimensions fit within the available space constraints of the target electronic assembly design.

Part Context

This component belongs to the KEMET ESD-FPL series of solid ferrite cores. These are distinct from split-core types and are designed for permanent installation on flat cables. The series offers various internal widths to accommodate different cable sizes while maintaining consistent external form factors for standardized mounting.

Replacement Considerations

Direct substitutes include other KEMET ESD-FPL models with matching internal dimensions, such as ESD-FPL-32-14.5 if height variations are acceptable. Cross-reference internal width (28mm) and material type (Ni-Zn) when evaluating alternatives from other manufacturers.
