ESD-FPL-32-8

Overview

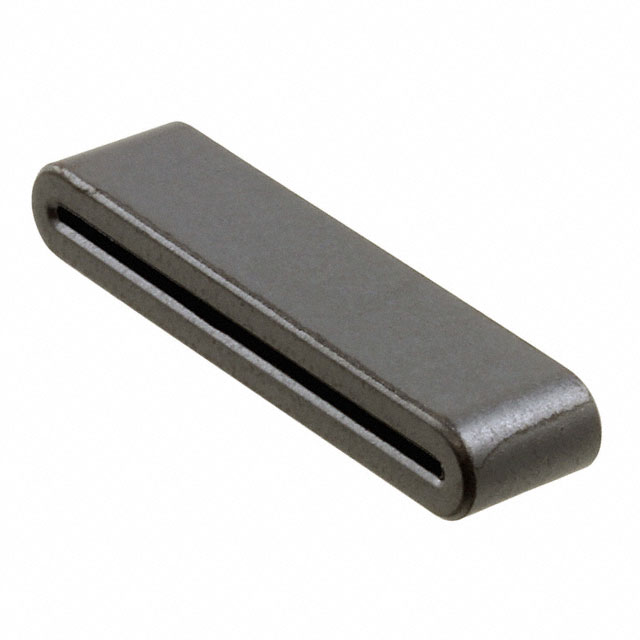

The KEMET ESD-FPL-32-8 is a split ferrite core designed for flat ribbon cables. It features an inner width of 28mm and an inner height of 0.8mm, accommodating cable bundles up to 28mm wide. The component is constructed from nickel-zinc material, providing effective electromagnetic interference suppression in high-frequency applications. It operates within a temperature range of -40°C to +85°C and supports frequencies up to 300MHz. The split design allows for installation on existing cables without disconnection.

Feature Summary

• Split core design enables non-invasive installation on pre-assembled flat ribbon cables
• Nickel-zinc composition provides stable magnetic properties for high-frequency noise suppression
• Specifically engineered for flat cable geometries with defined internal dimensions

Applications

• Electromagnetic interference filtering for flat ribbon cables in electronic assemblies
• Noise suppression in consumer electronics manufacturing and testing
• Signal integrity enhancement in data transmission lines using flat cabling

Procurement Notes

Verify the specific impedance value required for your application, as datasheets may list it as unspecified or dependent on cable configuration. Confirm that the 28mm inner width matches your cable bundle thickness. Ensure compatibility with the operating temperature range of -40°C to +85°C. Check for RoHS compliance status if required by your supply chain standards. Validate lead times as they may vary significantly due to manufacturing schedules.

Selection Notes

Select this component when retrofitting noise suppression onto existing flat cable assemblies is necessary. The split design eliminates the need to disconnect cables during installation. Ensure the cable bundle fits within the 28mm x 0.8mm internal aperture. Consider the nickel-zinc material characteristics for frequency response requirements up to 300MHz. Verify that the physical dimensions accommodate the available space in the enclosure.

Part Context

This part belongs to KEMET's ESD-FPL series of ferrite cores specifically designed for flat ribbon cables. The series offers various sizes to accommodate different cable widths and heights. These components are widely used in industries requiring efficient electromagnetic interference mitigation for flat cabling solutions. The split construction distinguishes them from solid core alternatives that require cable threading during assembly.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
