ESD-FPL-33.5-8

Overview

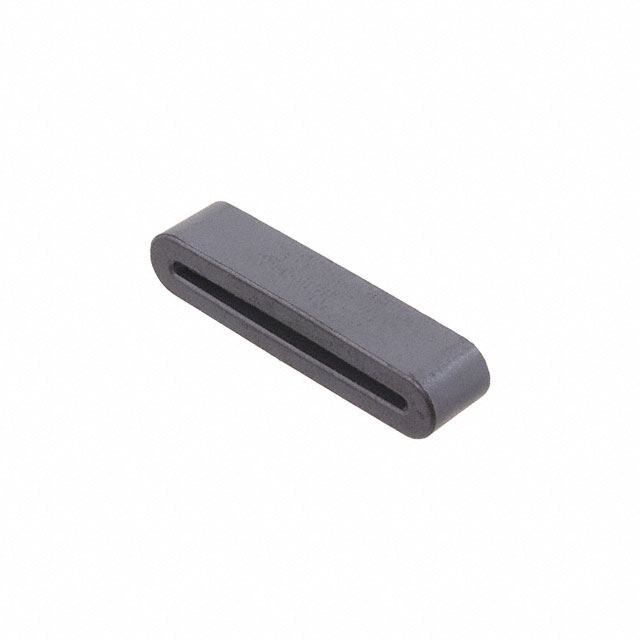

The KEMET ESD-FPL-33.5-8 is a solid Nickel-Zinc (NiZn) ferrite core designed for flat ribbon cables. It features an external length of 33.5 mm, an internal length of 27.5 mm, and an external width of 8 mm. The component is RoHS compliant and suitable for electromagnetic interference suppression in consumer electronics applications.

Feature Summary

• Solid Nickel-Zinc ferrite construction optimized for flat cable geometries
• Designed to suppress electromagnetic interference on ribbon cables

Applications

• Consumer electronics
• Flat ribbon cable assemblies

Procurement Notes

Verify the specific impedance rating at 100 MHz against your design requirements, as this value varies across the ESD-FPL series. Confirm that the physical dimensions match your cable bundle size. Ensure compliance with relevant environmental standards such as RoHS before finalizing procurement.

Selection Notes

Select this part when a solid NiZn core is required for flat cables. Compare internal length and width against the target cable thickness. Verify that the material properties align with the intended frequency range for effective noise suppression.

Part Context

This component belongs to the KEMET ESD-FPL series of solid ferrite cores. These are specifically engineered for flat ribbon cables rather than round wires. The series offers various dimensions and materials to suit different cable sizes and interference profiles.

Replacement Considerations

Check for other ESD-FPL variants with matching internal dimensions. Ensure substitute parts maintain the same NiZn material composition and RoHS compliance status.
